Slot Cell Inserter For A 24 36 Slot Inseter Type Stator Paper Inserting

: Large Image : Slot Cell Inserter For A 24 36 Slot Inseter Type Stator Paper Inserting

Product Details:

Place of Origin:	China
Brand Name:	WIND AUTOMATION
Model Number:	WIND-100-SI

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Wooden pallet suitable for sea or air shipment L910 mm x W880 mm x H1300mm3
Delivery Time:	30 working days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Condition:	New	Insertion Speed:	0.5 To 0.7 Second Per Slot
Stator Slots:	24 Slots, 36 Slots, 48 Slots And So On	Output:	24s/pc For A 36 Slot Inserter Type Stator
Machine Color:	White Or Per Customer Requirement	After Sales:	Engineer Available For Oversea Support

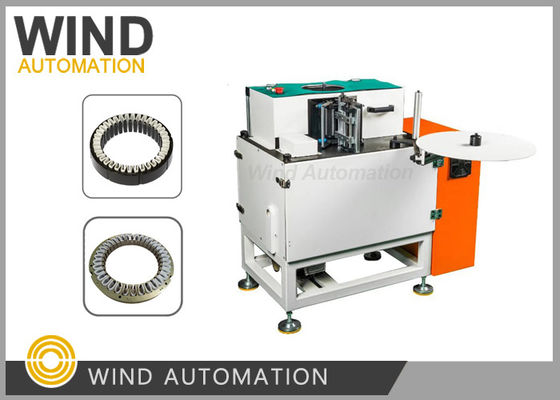

Slot Cell Inserter For A 24 36 Slot Inseter Type Stator Paper Inserting WIND-100-SI

This machine is used to insert polyester film insulation paper roll material with thickness within 0.35mm and customized width. After paper inserted, there should be no damage of stator or coil, no deformation of lamination, free of burr.

(1) Specification

Stack length	10~90mm
Stator ID	20~80mm
Stator OD	Max 140mm
Cuff height	2.5~4mm
Paper thickness	Max 0.25mm
Cycle time	0.45s/slot
Power supply	380V 50/60HZ
Weight	400KG
Dimension	1100x650x1050mm

(2) Feature
Low noise, high efficiency
Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required

(3) Application
This machine is suitable for small and medium-sized three phase motor, single phase motor, external rotor motor and generator.
