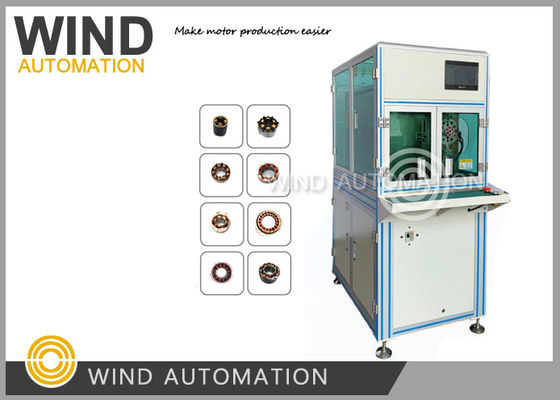

BLDC Inner Stator Pole Winding Machins For 2/4/6 Poles With Single Or Multiple Wires
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Certificate: | CE |
|---|---|---|---|
| Working Station: | Single Station | Automation Type: | Fully Automatic |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineers Available To Service Machinery Overseas |
Needle winding BLDC stators of Sewing Machine,Air conditioning compressor, Power tool, Refrigerator compressor,water pump automotive application , fuel pump motor
Two station BLDC Stator winding machine WIND-NR158-2 wind the brushless DC motor stator with two station to improve efficiency, easy to change tooling
Parameter
Wire diameter:0.08 to 1.2mm
Stator OD: 12 to 130 mm
Stack height: 5 to 100mm
Four Axis, Flexible to winding,
Winding motor: Servo motor Yaskawa 3000W 1pc
Indexing motor: Servo motor Yaskawa 3000W 1pc
Wire Arraying motor: Servo motor Yaskawa 400W 2pcs
Speed: 300 to 600 RPM
Air pressure:5~7kg/square centi-meter
Power:AC380V 50/60Hz
Weight: about 1500KGS Dimension: 1100mm*900mm*1600mm
Below samples are needed for machine manufacturing and commissioning:
1. Stator stack 5pcs without winding
2. Wound stator 1pc
3. Copper wire 1 roll enough for winding 15pcs stators
