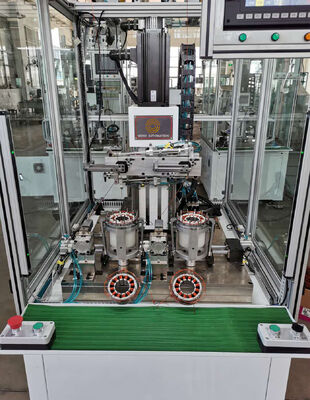

12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Certificate: | CE |
|---|---|---|---|
| Arraying: | Winding And Arraying At Same Time | Max Wire: | 1.13mm AWG17 Copper Wire |
| Automatic Type: | Fully Automatic Can Handle Thin Wire Thick Wire | Machine Color: | White Or Per Customer Requirement |
| After SalesWinding Speed: | Engineers Available To Service Machinery Overseas |
12 Slots BLDC Motor Stator 1.13mm AWG17 Copper Wire Needle Winding Machine WIND-2-TDM
(1) Application
Needle winding BLDC stators of Sewing Machine,Air conditioning compressor, Refrigerator
compressor,water pump automotive application , fuel pump motor with 6 poles, 9 poles, 12 poles or
18 poles
(2) Advantages
|
Neat and Tidy Winding |
For a 1.12mm wire size, 6 layers, 90mm stack height, 6layers winding result if neat and tidy displament
|
|
Winding Range speed |
0.67mm wire size, outside stator 400RPM 1.59mm wire size, inner side stator after winding 13.5KGS,
|
|
Winding and Arraying |
Most 6 layers Arraying can achieve compact winding, even resistance and better motor
|
(3) Feature
Brushless motor stator winding machine WIND-2-TDM is precise winding,
The tooling change can be done in 10 minutes,
The machine is widely applied for inside stator, outside motorcycle stators
(4) Parameter
Wire diameter:0.08~1.59mm (AWG17~AWG39)
Weight: about 750kgs
Dimension: 1600(L)x1100(W)x1400(H)mm

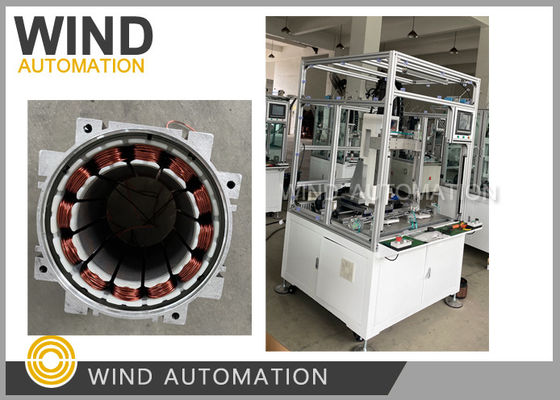

Below is example of wound stator
