Four Nozzles Stator Needle Winding Machine For 4 Poles Shaded BLDC Motor

China Four Nozzles Stator Needle Winding Machine For 4 Poles Shaded BLDC Motor supplier

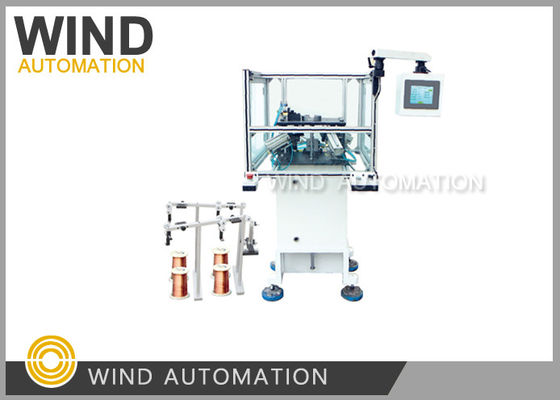

Large Image :  Four Nozzles Stator Needle Winding Machine For 4 Poles Shaded BLDC Motor

Product Details:

Place of Origin: China
Certification: CE
Model Number: WIND-1A-TSM

Payment & Shipping Terms:

Price: Negotiable
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Certificate: CE
Working Station: Single Station Automation Type: Fully Automatic
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas

Four Nozzles Stator Needle Winding Machine For 4 Poles Shaded BLDC Motor


The winding machine WIND-1A-TSM is suitable for 4 poles shaded pole motor to do winding.


Accordingly to stator winding way, different types of needle winding machine can have one ,

two , three,four needles


For 4 poles stator, we usually suggest customer with 4needles winding machine WIND-1A-TSM,


it can get the stator fast even there will be 4pcs begining wire and 4pcs ending wire needed to be




The needle is driven by cam device rotation which drive the winding spindle,


The machine WIND-1A-TSM major electrical parts such as Mitsubishi PLC, Embedded human - machine


interface, Airtac cylinder and so on have CE mark,


and we exported to Europe company such as France, Romania and so on,


May I know the reason that you'd prefer 1 needle or 2 needes, is it because of the bridge wire showed on




Basic machine type WIND-1-TSM with 1 needle is for production of prototypes of stators with small




It can wind the slot one by one, and you may need to put the bridge wire by hand if you use the type


WIND-1-TSM as  your stator insulation cap interfre the machine place bridge wire automatically,


The poles of shaded pole induction motor consist of 4 slots, which are cut across the laminations.


The smaller part of the slotted pole is short-circuited with the help of a coil. The coils are made up of


copper wire and it is highly inductive in nature. This coil is known as shading coil. The part of the pole


Wind Automation also provides customer with customized service, if stator beyond the specification listed blow.


Wire diameter 0.08~1.00mm
Stator ID 15~65mm
Stack length 7~90mm
Turn No. 0~9999
Movement Stepping/Auto
Slot number 4 (customized)
Air source 5~7kg/cm3
Power 2KW
Power supply AC 220 V, 50/60HZ
Weight 450KG
Dimension 1550x900x1450mm

Suitable for 4 poles shaded pole motor to do winding.

(3)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
High-power stepping motor
Lubrication system
4 sets auto wire clamping and cutting system

High speed needle winding
fully programmable operation
High quality level of the needle winding process
Depending on the customer`s specifications.
Automatic winding, indexing, layering and terminating
Quick change-over of tooling





Automatic stator needle winding machine application


Four poles shaded motor stator winding


Nozzle 4pcs


4 poles wind at same time at 400rmp,

There will be 4 staring wires and 4 terminal wires,

For turns no 750, wire diameter SWG35, 0.2mm,

shaded pole stator, the cycle time is 2minutes


4 ploles stator needle winding


Dedicated machine for 4 poles shaded motor


stator winding







1. Wind 4 slots per time, fast


2. Automatic winding, automatic cutting four poles per time

3. 4 Sets automatic clamp and cut wire device, wind shaded pole motor 4slots at same time,


and cut wires automatically


which has the coil is called the shaded part and the other part of the pole is called unshaded part.




Motor winding machine manufacturer sample needed:


1. Stator stack samples each 5pcs
2. Copper wire gauge each 1roll
3. Stator lamination drawing and winding drawing

Please click below picture to view video
