Four Nozzles Stator Needle Winding Machine For 4 Poles Shaded BLDC Motor
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Certificate: | CE |
|---|---|---|---|
| Working Station: | Single Station | Automation Type: | Fully Automatic |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineers Available To Service Machinery Overseas |

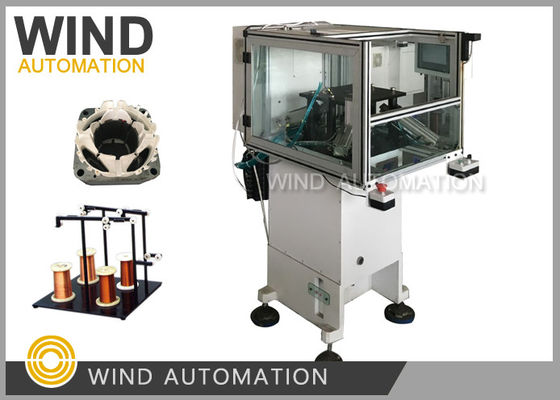

Four Nozzles Stator Needle Winding Machine For 4 Poles Shaded BLDC Motor
The winding machine WIND-1A-TSM is suitable for 4 poles shaded pole motor to do winding.
Wind Automation also provides customer with customized service, if stator beyond the specification listed blow.
(1)Specification
| Wire diameter | 0.08~1.00mm |
| Stator ID | 15~65mm |
| Stack length | 7~90mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 4 (customized) |
| Air source | 5~7kg/cm3 |
| Power | 2KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 450KG |
| Dimension | 1550x900x1450mm |
(2)Application
Suitable for 4 poles shaded pole motor to do winding.
(3)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
High-power stepping motor
Lubrication system
4 sets auto wire clamping and cutting system
(4)Features
High speed needle winding
fully programmable operation
High quality level of the needle winding process
Depending on the customer`s specifications.
Automatic winding, indexing, layering and terminating
Quick change-over of tooling
|
Automatic stator needle winding machine application
|
Four poles shaded motor stator winding |
|
Nozzle 4pcs
|
4 poles wind at same time at 400rmp, There will be 4 staring wires and 4 terminal wires, For turns no 750, wire diameter SWG35, 0.2mm, shaded pole stator, the cycle time is 2minutes
|
|
4 ploles stator needle winding |
Dedicated machine for 4 poles shaded motor
stator winding
|
Advantages:
1. Wind 4 slots per time, fast
2. Automatic winding, automatic cutting four poles per time
3. 4 Sets automatic clamp and cut wire device, wind shaded pole motor 4slots at same time,
and cut wires automatically
which has the coil is called the shaded part and the other part of the pole is called unshaded part.
Motor winding machine manufacturer sample needed:
1. Stator stack samples each 5pcs
2. Copper wire gauge each 1roll
3. Stator lamination drawing and winding drawing
Please click below picture to view video
Shaded motor 4 pole stator winding machine winder Shanghai Wind Automation Equipment Co.,Ltd from EmilyGao of coils winding supply on Vimeo.
