Ferrite Magnet Magnetizer Rotor Magnetizing and testing machine

China Ferrite Magnet Magnetizer Rotor Magnetizing and testing machine supplier

Large Image :  Ferrite Magnet Magnetizer Rotor Magnetizing and testing machine

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: Ferrite Magnet Charger

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet
Delivery Time: 45 working days
Detailed Product Description
Condition: New Workpiece: Nd2Fe14B,SmCo,AlNiCo Or Ferrite
Radial Magnetization: Magnetizing The Magnetic Strip Of The Magnet In The Motor Output: 1500pcs/8 Hours For A Standard Size Stator
After Sales: Engineers Available To Service Machinery Overseas HS Code: 8479819000

Ferrite Magnet Magnetizer Rotor Magnetizing and testing machine







(1) Application

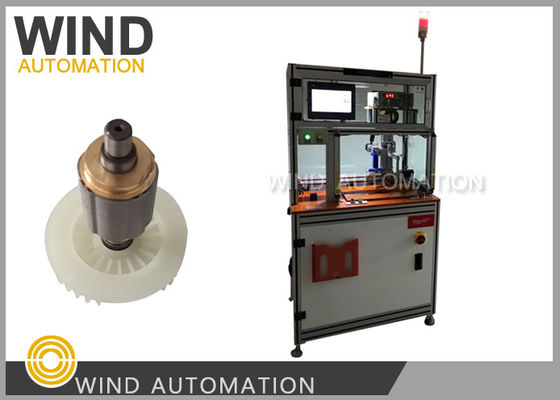

This machine integrates magnetizing machine and testing machine into one machine, greatly reducing working stations and saving labor. It is used to do magnetization and magnetic flux test of the brushless motor rotor. Machine adopts a multidimensional motor module and high-quality components to control the accuracy of the action, advanced measurement technology and sampling technology to ensure quality. All the parameter of workpiece can be programmed on the touch screen. Machine is easy to operate and adjustable for different model numbers by changing fixture.



Machine Configuration

PLC Mitsubishi
Touch screen Weinview
Precision transmission mechanism Lei Sai motor, HIWIN screw
Position sensor Omron
Fluxmeter HT700S
Switching power supply Meanwell
Light curtain Panasonic or Omron



(2) Operation step

  • Put workpiece on the fixture. Press start button by two hands.
  • Pressing rod will move to the top of workpiece, then press workpiece downward to enter the middle position of the magnetizing head.Then machine will do automatic magnetization and magnetic flux test.
  • After tested, pressing rod will press workpiece upward, then move away.
  • Mechanical arm will clamp workpiece and carry it to the unloading area.







(3) Flow chart



Ferrite Magnet Magnetizer Rotor Magnetizing and testing machine





(4) Information needed to send offer



1. This magnet is related to magnetizing power, please inform magnet material

    if magnet is Nd2Fe14B,SmCo,AlNiCo or ferrite?



2. Drawing of the rotor
