Electric Car Stator Conductor Argon Arc TIG Welding Machine

China Electric Car Stator Conductor Argon Arc TIG Welding Machine supplier

Large Image :  Electric Car Stator Conductor Argon Arc TIG Welding Machine

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-TIG-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Two pallets one for welding machine , one for water cooling device 662KGS 1040mm*1040mm*1960mm, 740mm*740mm*1270mm
Delivery Time: 60 working days
Payment Terms: T/T
Detailed Product Description
Welding Application: Integrated Starter Generator Assembly Automotive Technology: Stator Silver Joint Tig Welding Application
Production Process: The Stator Winding Process Involves Pin Forming, Insertion, Slot Insulation, Conductor Twisting ( Double Layer ), Conductor Ends TIG Welding, Star Joint TIG Welding Etc. Welding Place: Copper Conductor TIG Welding Machine
Fusing Type: The Welding Operation And Setting Is Easy For Operator PLC: Mitsubishi
Gross Weight: 600KGS Including Package Pallet 4 Axis Servo Device: Welding Spindle,Indexing Spindle, Feeding Shaft And Lifing Shaft With Mitsubishi Servo Motor

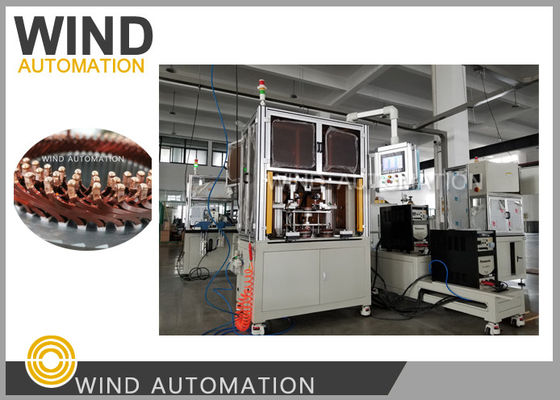

Electric Car Stator Conductor Argon Arc TIG Welding Machine



https://youtu.be/55ad3B7YIdI



(1) Application:



Integrated Starter Generator assembly for 2 layers, 4 layer, 6 layers conductor end joint







(2)TIG Welding machine Advantages:

Comparing resistance welding, below are the reason why TIG welding are widely used in Hybrid car stator

1. The three conductor is not easy to clamp if use resistance welding

2. TIG welding is a kind of melting welding which have stronger connection of copper wire and copper wire,

3. Welding contacting resistance of TIG welding is smaller than resistance welding

4. All the three conductor's position are towards up in same way, it is easy to use TIG welding method,

Related pure electrical car also use TIG welding method




(3) TIG Welding machine Q&A:

What is the purpose of below marked unit?

Electric Car Stator Conductor Argon Arc TIG Welding Machine

This unit in TIG welding machine is used to isolate the second layer conductor wire,

during first layer conductor wire welding, machine will not weld the second layer wire,

and this function is applied to 4 layer, 6 layers conductor joint, not applied in 2 layers stator

Electric Car Stator Conductor Argon Arc TIG Welding Machine







(4) TIG Welding fusing machine Parameter:



Welding joint can be set, the starting joint can be set, and stand alone for welding amending can be set



Power Supply: 220V or 380V,50Hz



Welding spindle,Indexing spindle, Feeding shaft and Lifing shaft with Mitsubishi servo motor



PLC: Mitsubish 5U series



Touch screen: WEINVEIW



Cylinder: Airtac



Pressure:>0.5MPa



Weight: around 600KGS



Dimenstion:800*800*1500mm



Please click below photo to view video
