Slotted Commutator Undercutting Machine For Grooving Mica INDUZIDO

China Slotted Commutator Undercutting Machine For Grooving Mica INDUZIDO supplier

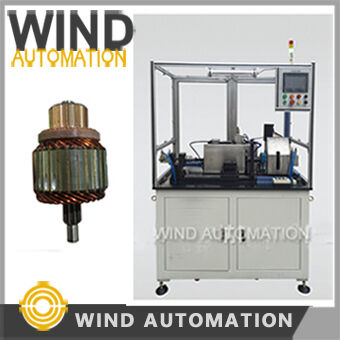

Large Image :  Slotted Commutator Undercutting Machine For Grooving Mica INDUZIDO

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-CU

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1 Pallet Weight: about 900Kg Machine dimension: 1,200mm x 750 mm x 1,800mm3
Delivery Time: 30 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Positioning: Laser Sesor
Working Station: One Station Machine Color: White Or Accordingly To Customer Requirement
Cutting Slots: 2 To 99 Slots Slotting Speed: 1 Seconds/ Slot
HS Code: 84581100 Certificate: CE

Slotted Commutator Undercutting Machine For Grooving Mica   WIND-CU

Commutator slot undercutting machine demo for Starter armature from Leo Wang of www.coilswinding.com on Vimeo.

Commutator Micanite Grooving Undercutting Machine Application:



The commutator undercutting machine is designed to cut the DC motor armature mica/micanite

slotted commutators were used,except for automotive starters,some power tools and traction motors





Commutator Undercutting Machine Competitive Advantages:



Mica undercutting machine feature Description Remark
Automatic positioning method and device Use laser sensor automatic positioning the first mica slot and every slot Precise
Mechanism With Mitubushi servo motor and planetary deduction  Accurate and realiable
less jumping and lifting cutter action during undercutting The trace path trajectory can be avoided during undercutting engraving reducing the grooved burrs
Clearly remove dust Industrical vacuum clearner







Specification:



                   Model        WIND-CU-8066
Slots 2~99
RPM 3000~5000RPM Adjustable
Ø coletor 30-80mm
Rotor OD <100mm
Power supply 380V
Total power 3KW
Mica lenght <100mm
Number of recipes 10 Sets
Armature maximum lenght <200mm
Does it has dust collector, vacum cleaner? Yes, industrial vacuum clearner is included in Wind Automation offer
How can we ensure that will not have burrs after the undercutting process? The cutter Lifting action can ensure no burrs
what is the production rate for a 25 slots armature for example? About 1 minutes (For each slot 2~3 seconds)
Spare parts Cutter
Main parts Brand SMC
Is it controlled by PLC ou industrial computer? PLC
Machine color options You can choose from www.ralcolor.com
Describe the safety features Safety curtain
Overall dimension: 1300*950*1950mm
Lead time for production 60days
Warranty terms 15 Month from B/L date
Extra tooling cost Need to change shaft clamp accoring to shaft size
