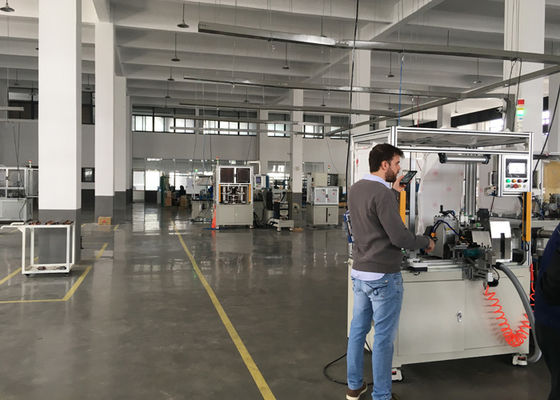

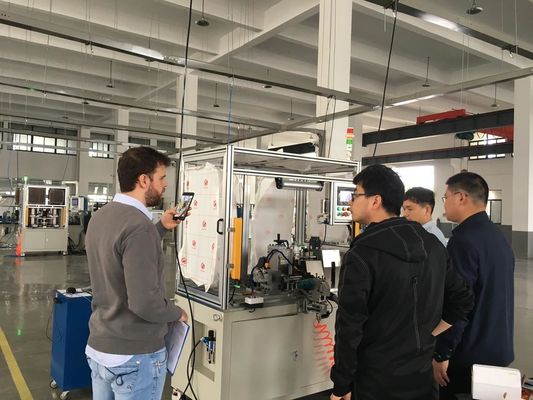

: Large Image : Slotted Commutator Undercutting Machine For Grooving Mica INDUZIDO

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1 Pallet Weight: about 900Kg Machine dimension: 1,200mm x 750 mm x 1,800mm3
Delivery Time:	30 working days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Condition:	New	Positioning:	Laser Sesor
Working Station:	One Station	Machine Color:	White Or Accordingly To Customer Requirement
Cutting Slots:	2 To 99 Slots	Slotting Speed:	1 Seconds/ Slot
HS Code:	84581100	Certificate:	CE

Slotted Commutator Undercutting Machine For Grooving Mica WIND-CU

Commutator Micanite Grooving Undercutting Machine Application:

The commutator undercutting machine is designed to cut the DC motor armature mica/micanite

slotted commutators were used,except for automotive starters,some power tools and traction motors

Commutator Undercutting Machine Competitive Advantages:

Mica undercutting machine feature	Description	Remark
Automatic positioning method and device	Use laser sensor automatic positioning the first mica slot and every slot	Precise
Mechanism	With Mitubushi servo motor and planetary deduction	Accurate and realiable
less jumping and lifting cutter action during undercutting	The trace path trajectory can be avoided during undercutting engraving	reducing the grooved burrs
Clearly remove dust	Industrical vacuum clearner

Specification:

Model	WIND-CU-8066
Slots	2~99
RPM	3000~5000RPM Adjustable
Ø coletor	30-80mm
Rotor OD	<100mm
Power supply	380V
Total power	3KW
Mica lenght	<100mm
Number of recipes	10 Sets
Armature maximum lenght	<200mm

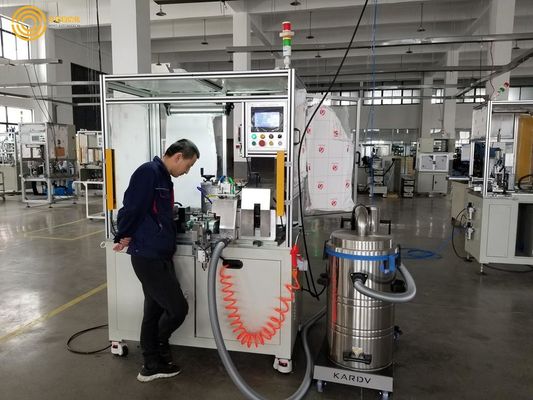

Does it has dust collector, vacum cleaner?	Yes, industrial vacuum clearner is included in Wind Automation offer
How can we ensure that will not have burrs after the undercutting process?	The cutter Lifting action can ensure no burrs
what is the production rate for a 25 slots armature for example?	About 1 minutes (For each slot 2~3 seconds)
Spare parts	Cutter
Main parts Brand	SMC
Is it controlled by PLC ou industrial computer?	PLC
Machine color options	You can choose from www.ralcolor.com
Describe the safety features	Safety curtain
Overall dimension:	13009501950mm
Lead time for production	60days
Warranty terms	15 Month from B/L date
Extra tooling cost	Need to change shaft clamp accoring to shaft size
