Motor Stator Coil Stitched Cord Knit Lacing Machine For Frame 112,132,160

China Motor Stator Coil  Stitched Cord Knit Lacing Machine For Frame 112,132,160 supplier

Large Image :  Motor Stator Coil Stitched Cord Knit Lacing Machine For Frame 112,132,160

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-300-CL

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 30working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Application: Induction Motor
Working Station: Single Station Side By Side Automation Type: Fully Automatic
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas

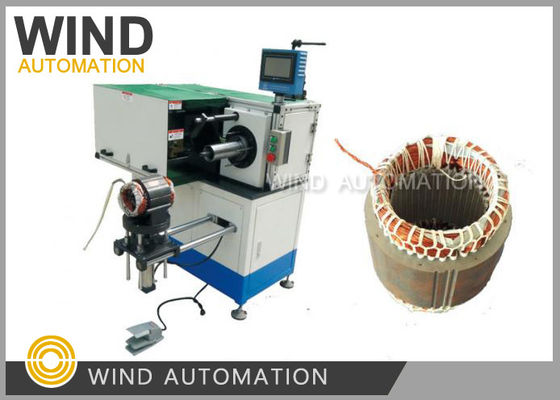

Motor Stator Coil Stitched Cord Knit Lacing Machine For Frame 112,132,160 WIND-300-CL



This Stator coil knit lacing machine is for lace the stator end coils one side by side,

is one process of big induction motor ac motor manufacturing covering frame 112, 132, 160



Stator coils lacing is the process of tightly securing the field coil ends of an electric motor stator with a stitched cord,

also called motor stator coil braiding.



Stator Coil Knot machine application:

Lacing is typically used on long-life-expectancy or high-efficiency motors such as some induction motor where the cost of failure is high. Generally, low-cost “throwaway” motors are not laced.



Stator Coil Knot machine parameter:

Stator ID Less than 250mm
Stator OD Less than 350mm
Stack length 80~260mm
Slot range 8-48
Coil height 20~65mm
Lacing speed About 1s/slot
Power supply 220V/ 50/60Hz
Weight 700KG
Dimension 1550x1200x1500mm







Application:



For generator,Deep water pump,three phase motor slot insulation







 Advantages:



1. Use  the stator Inner side Diameter  to do positioning,  easy to change tooling



2.  Three servo motors ensure the easy adjustment of machine and smooth lacing,

      One Delta servo motor control the stator indexing

      One Delta servo motor control the nozzle movement (the nozzle guide the stitched cord)

      One Delta servo motor control the mechanical movement of the whole machine



3. One of the top sold machine during induction motor manufacturing machines,

    Upgrade every year per local user motor manufacturer's feedback







Please click below picture to view video



Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Send your inquiry directly to us (0 / 3000)
