Product Details:
Payment & Shipping Terms:
|
Condition: | New,custom Made According To Product | Pressure: | 1Ton, 1.6 Ton To 250Ton |
---|---|---|---|
Workpiece: | Bearing, Sleeve | Controller: | PLC Control |
Press HS Code: | 84629190 | After Sales: | Engineers Available To Service Machinery Overseas |

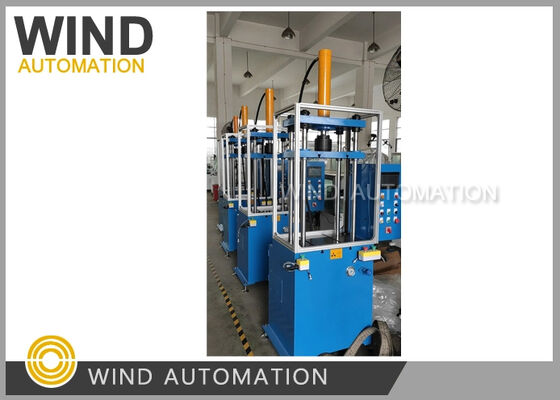

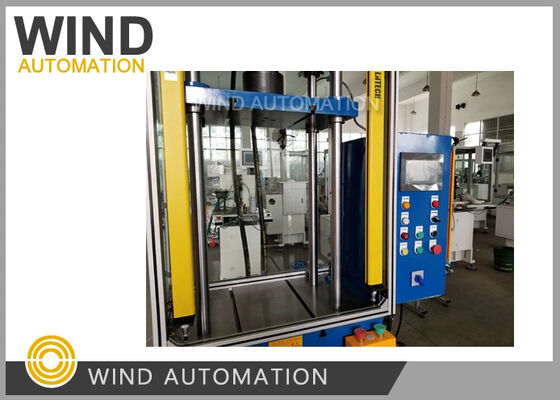

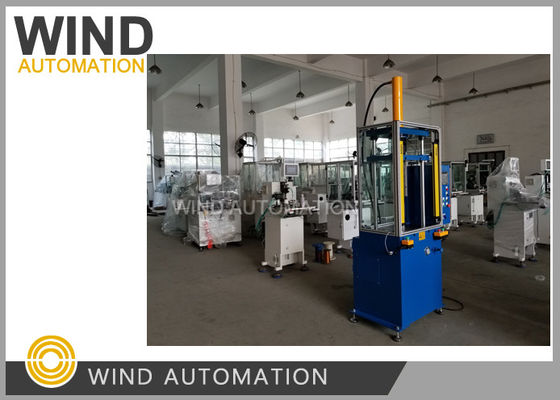

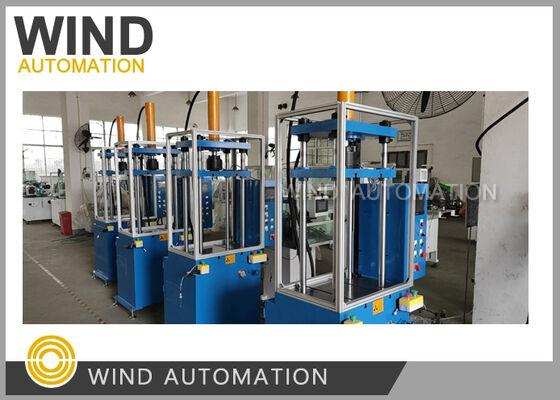

Spindle Inserting Machine Axis Inserter Machine Hydraulic Press Machine WIND-Y32 Series
(1) Application
Hydraulic machine for placing the stack to the and pressing the stack to get better perpendicularity and parallelism on the stack.
Press capacity will be min 15 ton.
Press should have position controller and load controller.
Minimum stroke will be 250mm
Distance between the table and shaft end is 450mm
(2) Competitive Advantages
1. The motor manufacturers have 100% satisfication good feedback
2. Easy to operate and set on screen
3. Safety curtain ensure the safety
4. Pressure sensor and magnetic scale make sure timely observation and detection
(3) Parameter
Hydraulic press application | Features |
Bearing press | The pressure sensor need capable to measure force |
Shaft inserting machine |
Press machine have the capability to define lower and uppler press on
force limits to detect low or upper force.
|
Commutator placement |
Commutator press fixture make sure the location of commutator and slot in a relative fixed place for armature winding process |
