Rotor Slot Insulation Paper Insolation Polyester Cell DMD NMN PMP Inserting

China Rotor Slot Insulation Paper Insolation Polyester Cell DMD NMN PMP Inserting supplier

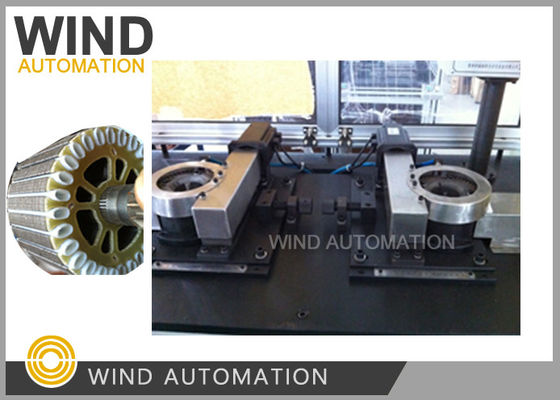

Large Image :  Rotor Slot Insulation Paper Insolation Polyester Cell DMD NMN PMP Inserting

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-SZ-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden pallet suitable for sea or air shipment
Delivery Time: 30 working days
Payment Terms: T/T
Detailed Product Description
Isolator Type: S Shape, O Shape, U Shape Insertion Speed: 1 Second Per Slot
Material: DMD, DM, Polyester Film 0.18~0.2mm Heater Temperature For Paper Shape Forming: 70 ~ 100 ℃
Machine Color: White Or Per Customer Requirement After Sales: Engineer Available For Oversea Support
High Light:

motor insulation paper

,

inserter machine

Rotor Slot Insulation Paper Insolation Polyester Cell DMD NMN PMP Inserting WIND-SZ-2







(1) Application



This paper inserting machine WIND-SZ-2 automatic heating, shaping, cutting off paper and



insertion,automatic indexing







(2) Competitive Advantages



a. Easy operation and quicker change tooling



b. The machine mechanical structure co-work perfectly with electronic system,



  achieve higher stable performance in starter armature manufacturing market



c. Wind Automation insist on using the best part for oversea market



     which can ensure the stable performance,save labor cost



     comparing to paper forming and manual inserting production process



d. User like Ametek put repated order because of its easy opearation and quick change tooling process







(3) Parameter



Insulation material thickness: 0.18~0.2mm


Armature stack height: Max 100mm



Power Supply: 220V±10% 50Hz



Air source Pressure: 0.5~0.7Mpa



Heating temperater: 70~100℃



Weight: Around 700KGS



Dimension: 1200*650*1500mm



Rotor Slot Insulation Paper Insolation Polyester Cell DMD NMN PMP Inserting









Please click below link to view video

http://vimeo.com/106465846
