Double Station AC Motor Winding Machine Rotor Analyser Commutator Bars Below 96

China Double Station AC Motor Winding Machine Rotor Analyser Commutator Bars Below 96 supplier

Large Image :  Double Station AC Motor Winding Machine Rotor Analyser Commutator Bars Below 96

Product Details:

Place of Origin: China
Model Number: WIND-ATS-300

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea shipment
Delivery Time: 20 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Testing Product: Armature With Commutator Bars Below 96
Working Station: Two Station Test Item: Dielectric Strength,DC Resistance And So On
After Sales: Engineers Available To Service Machinery Overseas Certificate: Main Parts CE
High Light:

high voltage test equipment


armature testing machine

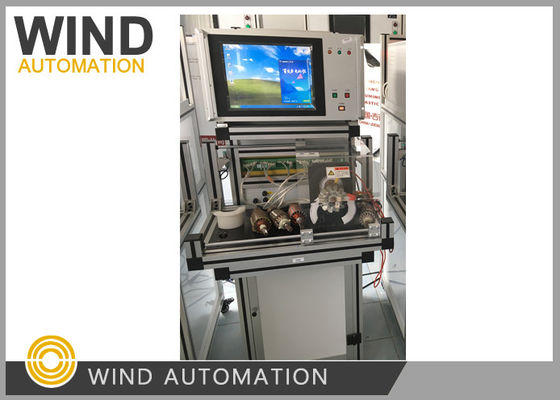

Double Station Armature Testing Panel Rotor Analyser Commutator Bars Below 96 WIND-ATS-300




(1) Application



This armature testing machine test the armature with commutator bars below 96


Quick and accurate identification of rotor (armature) defects in the production process of welding, winding,


finishing, etc., and the location of the fault point, to facilitate the operator to repair the bad product.


a. For the small resistance of the welding resistance, the system adopts a direct measurement method


    and  truly reflects the welding condition of the commutator.

b. The voltage of the high voltage test is automatically adjusted and generated, stable and convenient.

c. Up to 3 sets of power frequency withstand voltage test meet the needs of various products.

d. All standard parameters are automatically read in one-click mode, simplifying the cumbersome


    process of parameter setting.

e. Double station test fixture design greatly improves production efficiency.

f. The equipment is modularly designed according to the test function, so the work is more stable


   and maintenance and maintenance are more convenient.




(2) Test Item


1. Dielectric strength (Hi-Power,Hi-pot) test, bewteen armature and coil


2. Insulation resistance,between armature and coil


3. Turn to turn insulation, between coil and coil


4. Cold resistance,between commutator segment and segment


5. Welding resistance, between commutator segment and coil welding point




(3) Operation of tester

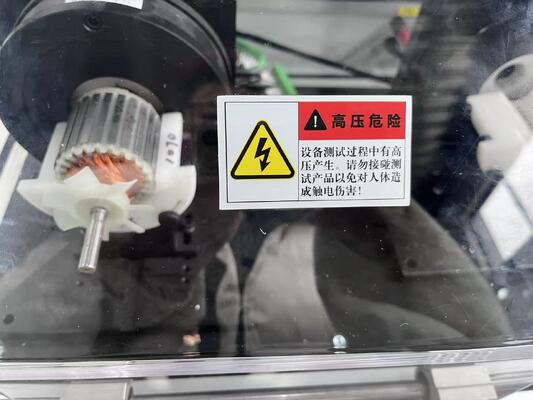

The loading and testing mode could be shifted by sliding the safety cover.


The testing panel starts testing once the safety cover being slid upon the working station.




(4) Technical Data


WIND-ATS-300 Number of bars :≤96
Test items Test Description Test results
  0.001Ω-1000Ω ≤±0.5%Full scale
Inter-chip resistance Automatic environment temperature compensation
  0.001mΩ-10mΩ ±10μΩ
Welding resistance
  0.01Ω-1000Ω ≤±0.5%Full scale
180 resistance Automatic environment temperature compensation
  100-2000Vpp ±2.5%
Surge (Max 96 sets waveform)
  DC 500V 0.1-500MΩ
Isolation resistance ≤±2.5% Full scale
  AC 100-2000V 0-20mA
Hipot (2set high pot test) ≤±2.5% Full scale


Power: AC220V ±10% @50Hz


Air pressure: 0.4-0.6Mpa


Temperature: 0-45℃




Armature testing machine manufacturer sample needed:

 Armature sample

Please click below link to view video of motor manufacturer who use WIND-ATS series armature tester


Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Tel: 86-21-58992293

Send your inquiry directly to us (0 / 3000)
