WIND-ATS-300 AC DC Motor Winding Machine Double Station Armature Testing Panel

All Products

Stator Winding Machine (55)

Needle Winding Machine (29)

Coil Winding Machine (57)

Armature Winding Machine (29)

Hot Staking Machine (24)

Commutator Turning Machine (28)

Powder Coating Machine (25)

Slot Insulation Machine (46)

Hydraulic Press Machines (15)

AC Motor Winding Machine (26)

Armature Testing Equipment (48)

Trickle Impregnation Machine (16)

Fan Motor Winding Machine (12)

Hairpin Winding Machine (25)

Certification

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

We are very happy with the machines!

—— Efrain.Alvarado

Any of the dimensions is fine whichever is more convenient to you

—— David

The Akron Plant was moved to Princeton, Indiana which is where I work. We are happy with the Wind Automation Winder you made several years ago.

—— Jim

I'm Online Chat Now

WIND-ATS-300 AC DC Motor Winding Machine Double Station Armature Testing Panel

Large Image : WIND-ATS-300 AC DC Motor Winding Machine Double Station Armature Testing Panel

Product Details:

Place of Origin:	China
Brand Name:	WIND AUTOMATION
Model Number:	WIND-ATS-300

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Wooden case suitable for sea shipment
Delivery Time:	20 working days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Condition:	New	Testing Product:	Armature With Commutator Bars Below 96
Working Station:	Two Station	Machine Color:	White Or Per Customer Requirement
After Sales:	Engineers Available To Service Machinery Overseas	Certificate:	Main Parts CE
Highlight:	high voltage test equipment , armature tester

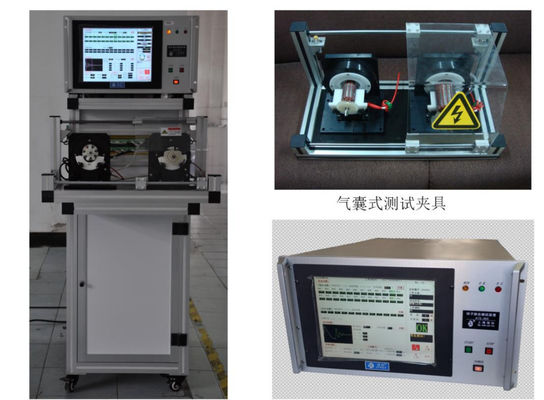

Double Station Armature Testing Panel Rotor Analyser Commutator Bars Below 96 WIND-ATS-300

(1) Application

This armature testing machine test the bar-bar resistance, welding resistance, dielectric strength(Hi-pot),

insulation resistance and turn-turn insulation.

The loading and testing mode could be shifted by sliding the safety cover.

The testing panel starts testing once the safety cover being slid upon the working station.

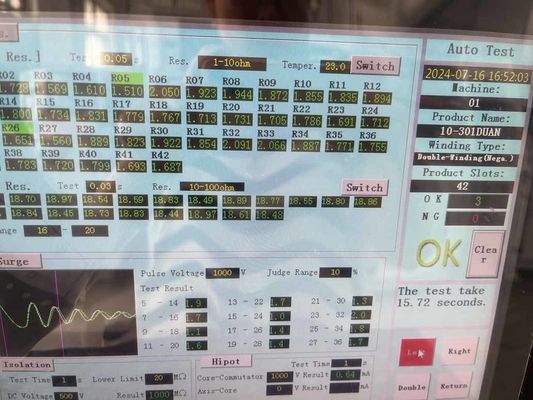

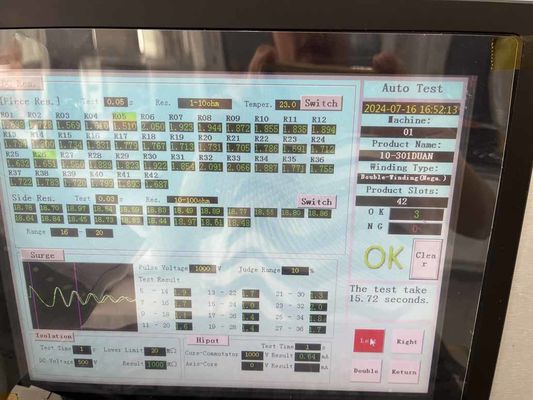

WIND-ATS-300 AC DC Motor Winding Machine Double Station Armature Testing Panel 0

(2) Competitive Advantages

1.Test armature up to 96bars commutator

2. Double working station can be shited easily by move the safety cover

(3) Technical Data

WIND-ATS-300	Number of bars :≤96
Test items	Test Description	Test results
	0.001Ω-1000Ω	≤±0.5%Full scale
Inter-chip resistance	Automatic environment temperature compensation	≤±0.5%Full scale
	0.001mΩ-10mΩ	±10μΩ
Welding resistance	0.001mΩ-10mΩ	±10μΩ
	0.01Ω-1000Ω	≤±0.5%Full scale
180 resistance	Automatic environment temperature compensation	≤±0.5%Full scale
	100-2000Vpp	±2.5%
Surge	(Max 96 sets waveform)	±2.5%
	DC 500V	0.1-500MΩ
Isolation resistance	DC 500V	≤±2.5% Full scale
	AC 100-2000V	0-20mA
Hipot	(2set high pot test)	≤±2.5% Full scale
