Induction Pump Motor Slot Insulation Machine DMD Insulation Paper Polyester Inserter

China Induction Pump Motor Slot Insulation Machine DMD Insulation Paper Polyester Inserter supplier

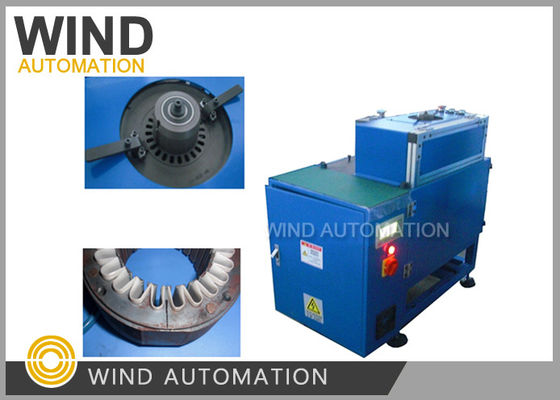

Large Image :  Induction Pump Motor Slot Insulation Machine DMD Insulation Paper Polyester Inserter

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-100-SI

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden pallet suitable for sea or air shipment L950 mm x W600 mm x H1000mm3
Delivery Time: 30 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Insertion Speed: 0.5 To 0.7 Second Per Slot
Motor Stator: Water Pump,air Compressor Output: 24s/pc For A 36 Slot Inserter Type Stator
Machine Color: White Or Per Customer Requirement After Sales: Engineer Available For Oversea Support
High Light:

motor insulation paper

,

paper inserting machine

Induction Pump Motor Slot Cell Insertion DMD Insulation Paper Polyester Inserter WIND-100-SI







(1) Application



This slot cell forming and inserting machine WIND-100-SI



Insert insulation paper polyester to stator's slot to insulate it with winding.



Alta eficiencia, tecnología avanzada, estable performance.



Help a reducir costes mientras mantienen la alta calidad.







(2) Competitive Advantages



Efficiency                   0.5 to 0.7 second per slot



Save labor cost           comparing to paper forming and manual inserting production process



The edge folding length and insulation paper length can be adjusted







(3) Parameter



Item Name Item Data
Laminated thickness of stator 10mm-100mm
Max outer diameter of stator Φ 200mm
Height of stator Φ 15mm- Φ 90mm
Height of edge folded insolation 2.5mm-5mm
Max insulation paper's thickness 0.3mm
Feeding length 12mm-45mm
Tack time 0.5 to 0.7s/slot
Input Power Source 380V/50Hz
Power 0.75KW
Machine productivity around 1500pcs/8hours
Dimension 950mm × 600mm × 1000mm
Weight 150KGS









Please click below photo to view video



Induction Pump Motor Slot Insulation Machine DMD Insulation Paper Polyester Inserter
