Cast Aluminum Rotor Tester AC Motor Winding Machine For Compressor Pump Motor Quality Checker

China Cast Aluminum Rotor Tester AC Motor Winding Machine For Compressor Pump Motor Quality Checker supplier

Large Image :  Cast Aluminum Rotor Tester AC Motor Winding Machine For Compressor Pump Motor Quality Checker

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-RT-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 35 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Rotor OD: ≦145mm
Working Station: Single Station Waveform Peaks: 0-2.5V
Testing Item Content Display: Test Result Can Be Printed Rotor Type: Open Slot Rotor, Close Slot Rotor
High Light:

high voltage test equipment

,

armature testing machine

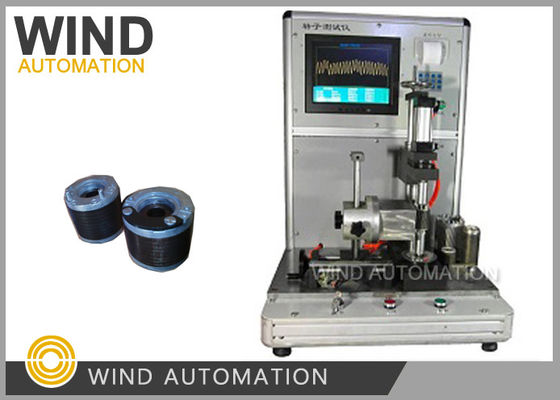

Cast Aluminum Rotor Tester For Compressor Pump Motor Quality Checker WIND-RT-1







(1) Quick Details



This cast aluminum rotor tester is used for determining blowholes, residues, thin strips, breaking, lack of



casting etc. Defects for squirrel-cage rotor in production casting process.And it can also test conducting



bar internal short circuit and poor performance caused by materials properties Differences.



Rotor manufacturer. This motor rotar tester is necessary equipment for Rotor manufacturer in quality



control.







(2) Advantages



1. Dedicated testing machine for judge rotor quality



2. The machine operation is simple and easy



3. Can test aluminum diecasting rotor with or without shaft







(3) Ask and Answer



Ask:


Why the waveform next to the AC induction motor diecast rotor broken bar of will become larger by tester?


Answer:


When cut magnetic lines, the broken bar of aluminum die casting Rotor doesn’t produce induced current,


So for the next bar of cast-aluminum rotor, the current is abrupt.



When Browhole (Porosity) occur, the bar is thin or too slim,


Porosity and sand holes standard should be defined by user as they are common.






(4) Test Item



1. Broken bars, tool slim bars



2. Porosity, sand holes,residues on bars,undercasting



3. Declination error,internal short circuit in bars



4. Alignment of core with bar



5. Improper end ring (Extra cost needed)







(5) Parameter



1. Applicable rotors:Complete slot opening rotors,Complete slot close rotors,slot close rotor with single



    process slot



2. Applicable rotor size:Rotor diameter≦145mm, Lamination thickness≦250mm



3. Waveform peaks:0-2.5V



4. Clamping methods:pneumatic



5. Testing speed: 3-5s/piece



6. Recording method: Computer Memory



7. Test result:Waveform display, Chinese prompts, audible alarm



8. Operation method: One button to complete clamping, measuring, unloading of the test piece



9. Working condition: Power supply:220V 50HZ.(Voltage can be customized) Air source:0.4Mpa



10. Outside dimension:600*700*900mm (L×W×H)



11. Weight:185Kg




(6) Types of Rotor fixture realted factors

Rotor ID, Rotor OD, Length, End ring height





Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Send your inquiry directly to us (0 / 3000)
