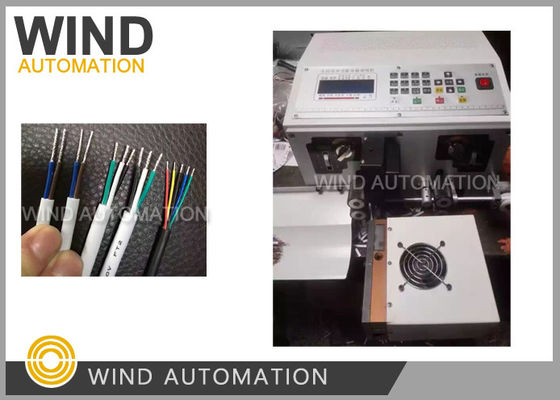

Cutting And Striping Machine For Sleeve Tube Cable AWG10 To AWG32 0.20~2.5
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Cutting Material: | High Slot Filling Rate Two Pole Stators | Material Size: | 0.203~2.590mm |
|---|---|---|---|
| Operator Job: | PVC,VSF,Teflon,Glass Fiber | Station: | One Working Station |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineers Available To Service Machinery Overseas |
| High Light: | coil making machine,stator coil winding machine |
||
Cutting And Striping Machine For Sleeve Tube Cable AWG10 To AWG32 0.20~2.5 XC-220
Application:
Cutting and striping machine machine for Sleeve tube cable,
widely used in processing of all kinds of wires of electrical appliance.
Parameter:
Material handling range: AWG10#~AWG32# 0.203~2.590mm
Cutting length: 0.1~99999.9mm
Striping length: One side 0~30mm , the other side 0－100mm
Cutting tolerance: ±(0.2+0.003*Length)mm
Speed : 6500pcs/hour(Counting by 100mm cutting length, both side 3mm stripping)
Material handling: PVC,VSF,Teflon,Glass fiber
Weight: 33KGS
Dimension: 400*450*300mm
Please click below link to view video
