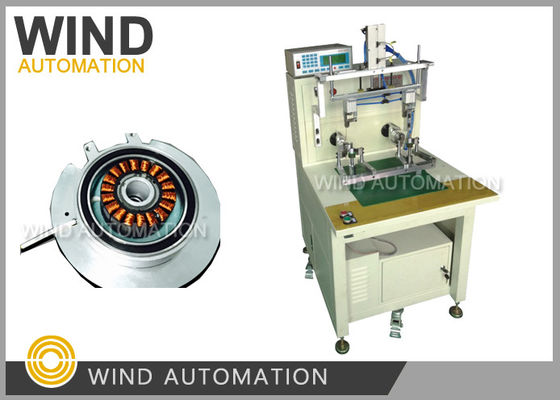

Armature Flyer Winding Machine Brushless Motor Coated Stack Outrunner Stator

China Armature Flyer Winding Machine Brushless Motor Coated Stack Outrunner Stator supplier

Large Image :  Armature Flyer Winding Machine Brushless Motor Coated Stack Outrunner Stator

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: Main parts CE
Model Number: WIND-HMW-205D

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Poly wood case suitable for sea and air shipment
Delivery Time: 45 Working Days
Payment Terms: T/T
Detailed Product Description
Copper Wire: Single Or Muti Wires Wire Diameter: Single Wire 0.1mm To 0.6mm
Parallel Wire: 0.28mm To 0.56mm Winding Type: Flyer Winding,not Needle Winding
Human-Machine Interface: Diagnose Show On CNC Screen Operation Method: Step, Auto, JOG
Highlight:

coil making machine

,

electric motor winding machine



Brushless Motor Coated Stack Outrunner Stator Armature Flyer Winding Machine WIND-HMW-205D







Application:



Armature flyer winding, Bicycle motor generator stator,



Airplan toy stator winding for single wire and parallel wires.







Competitive Advantages:





Mass production yield



1200pcs output per shift for a OD 72.8mm bicycle generator stator





Pass rate



99.9% good winding quality passing rate, stable and high efficiency





Automatic winding



Widely applied for outrunner stator such as bicycle generator








Parameter Data:



Wire diameter: 0.10~0.60mm (AWG22~AWG38)



Operation option: Automatic winding, automatic indexing, automatic winding arranging, automatic clamping



                            and cutting



Stator slot no. : 2 to 24slots (other slots custom made)



Stator stack height:5~50mm (0.197''~1.969'')



Stator OD:20~140mm (0.78'' ~5.5'')



Wire displacement: 60mm(2.36’’)



Power suplly: AC220V 50/60Hz



Weight: about 350KGS



Dimension: 1260(L)x650(W)x1150(H)mm







Information needed for Commutator Armature Winding Machine inquiry:



1. Stack lamination drawing



2. Wire size, turns no.



3. Winding configuration







Please click below photo to view video
