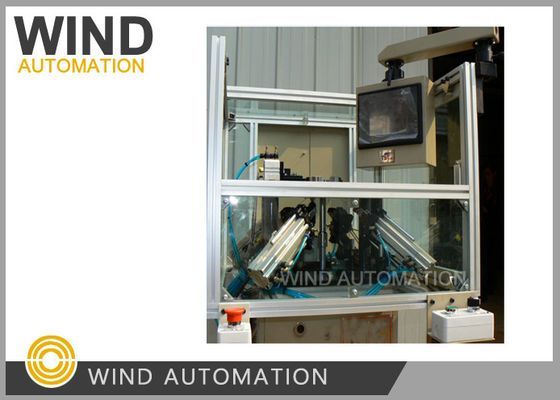

4 Needle Winding Machine 0.06mm To 1.0mm AWG18 To AWG42 Wire 4 Pole Stator

China 4 Needle Winding Machine 0.06mm To 1.0mm AWG18 To AWG42 Wire 4 Pole Stator supplier

Large Image :  4 Needle Winding Machine 0.06mm To 1.0mm AWG18 To AWG42 Wire 4 Pole Stator

Product Details:

Place of Origin: China
Certification: CE
Model Number: WIND-1A-TSM

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Pallet Dimension 1550mm*900mm*1450mm Weight 450KGS
Delivery Time: 45 Working days
Payment Terms: T/T
Detailed Product Description
Condition: New Wire Gauge: 0.06mm To 1.0mm AWG18 To AWG42
Working Station: 4 Needles Single Station Automation Type: Fully Automatic
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
High Light:

needle winder


bldc winding machine

0.06mm To 1.0mm AWG18 To AWG42 Wire 4 Pole Stator 4 Needle Winding Machine WIND-1A-TSM






Four poles BLDC stators




Competitive Advantages:


1. Wind 4 slots per time at 400RPM, fast


2. Automatic winding, automatic cutting wires


3. One local motor manufacture brought over 40pcs,


    and only 3 to 4 operators are needed to operate these machines






Wire diameter:0.08~1.00mm


Stator ID:15~65mm


Core length:7-90mm


Turns No.0-99999


Operation option: stepping,Auto


Stator poles: 4poles


Air pressure:5~7kg/square centi-meter


Power:2KW, AC220V 50/60Hz


Dimension: 1550*900*1450mm


Weight: about 450kgs




Winder Major Parts:


Big power Stepper motor


Mitsubishi PLC


Embedded human - machine interface


AIRTAC cylinder






Accordingly to stator winding way, different types of needle winding machine can have one , two , three,


four needles.


For 4 poles stator, we usually suggest customer with 4needles winding machine WIND-1A-TSM,


it can get the stator fast even there will be 4pcs begining wire and 4pcs ending wire needed to be




The needle is driven by cam device rotation which drive the winding spindle,


The machine WIND-1A-TSM major electrical parts such as Mitsubishi PLC, Embedded human - machine


interface, Airtac cylinder and so on have CE mark,


and we exported to Europe company such as France, Romania and so on,


May I know the reason that you'd prefer 1 needle or 2 needes, is it because of the bridge wire showed on




Basic machine type WIND-1-TSM with 1 needle is for production of prototypes of stators with small




It can wind the slot one by one, and you may need to put the bridge wire by hand if you use the type


WIND-1-TSM as  your stator insulation cap interfre the machine place bridge wire automatically.


The poles of shaded pole induction motor consist of 4 slots, which are cut across the laminations.


The smaller part of the slotted pole is short-circuited with the help of a coil. The coils are made up of


copper wire and it is highly inductive in nature. This coil is known as shading coil. The part of the pole


which has the coil is called the shaded part and the other part of the pole is called unshaded part.




Motor winding machine manufacturer sample needed:


1. Stator stack samples each 5pcs
2. Copper wire gauge each 1roll
3. Stator lamination drawing and winding drawing
