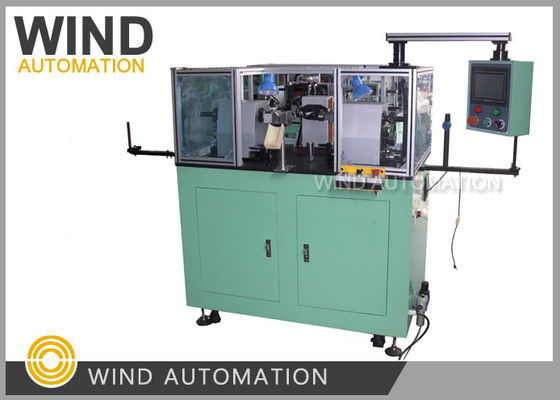

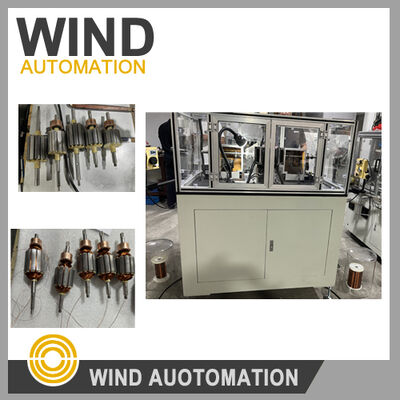

Automatic Armature AC Motor Winding Machine AWG 40 To AWG23 Copper Wire 0.08mm To 0.55mm

China Automatic Armature AC Motor Winding Machine AWG 40 To AWG23 Copper Wire 0.08mm To 0.55mm supplier

Large Image :  Automatic Armature AC Motor Winding Machine AWG 40 To AWG23 Copper Wire 0.08mm To 0.55mm

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: Main parts CE
Model Number: WIND-STR-2

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Poly wood case suitable for sea and air shipment
Delivery Time: 45 Working Days
Payment Terms: T/T
Contact Now
Detailed Product Description
Armature Commutaor Type: Hook Type,Tang Type Wire Diameter: 0.08~0.30mm (Mechanical Type Tensioner) AWG40 To AWG28
Wire Gaugge: 0.16~0.55mm (Hysteresis Tensioner) AWG23 To AWG34 Winding Type: Lap Winding Not Wave Winding
Human-Machine Interface: Diagnose Show On Screen Operation Method: Step, Auto, JOG
High Light:

coil making machine

,

stator coil winding machine



AWG 40 To AWG23 Copper Wire 0.08mm To 0.55mm Automatic Armature Winder WIND-STR-2







Application:



This armature winder WIND-STR-2 is a fast flyer coil winding machine for motor mass production



manufacturing of hook type tang type commutator armature,Mixer,Vacuum cleaners, Hammers,Power



tool...



and suitable for small wire gauge diameter winding.







Competitive Advantages:





Crazy Fast



Customize machine for thin wire armature winding





Easy Operation



The winding parameter can be setted on touch screen for different armatures





Slot and Hooks no.



12slots, 24hook, 12slots,12hooks








Parameter Data:



Wire diameter: 0.08~0.30mm (Mechanical type tensioner) AWG28 to AWG40



                        0.16~0.55mm (Hysteresis tension device) AWG23 to AWG34



Winding slots: Odd/even number



Commutator diameter: 8~40mm



Armature diameter: 20~60mm



Armature stack length: 10~60mm



Winding motor speed: 0~3000 rpm



Control system: Mitsubishi PLC control



Air supply pressure: 0.5~0.7MPa



Voltage:AC220V 50/60Hz



Weight: 500Kg



Dimension: 1800(l)X800(w)X1500(h)mm



HS code: 8479811000







Information needed for Commutator Armature Winding Machine inquiry:



1. Armature/Rotor lamination drawing



2. Armature/Rotor assemble drawing



3. Armature/Rotor stack drawing



4. Armature/Rotor winding diagram drawing: with rotor wire diameter and turn number



5. Armature/Commutator drawing



6. Required productivity



7. Other technical requirement



If possible, it will be better if customer can send us samples.
