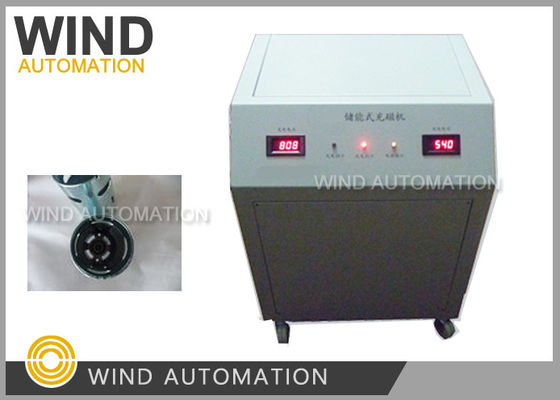

3.5KW 78KGS Stator Winding Machine Energy Storage Type Motor Ferrite Magnet Magnetizer

China 3.5KW 78KGS Stator Winding Machine Energy Storage Type Motor Ferrite Magnet Magnetizer supplier

Large Image :  3.5KW 78KGS Stator Winding Machine Energy Storage Type Motor Ferrite Magnet Magnetizer

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: Ferrite Magnet Charger

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet
Delivery Time: 45 working days
Detailed Product Description
Condition: New Workpiece: BLDC Motor Ferrite, Other Magnet
Radial Magnetization: Magnetizing The Magnetic Strip Of The Magnet In The Motor Output: 1500pcs/8 Hours For A Standard Size Stator
After Sales: Engineers Available To Service Machinery Overseas HS Code: 8479819000
High Light:

needle winder

,

motor stator winding machine

3.5KW 78KGS Energy Storage Type Motor Ferrite Magnet Magnetizer







(1) Application



Magnetizing the magnetic strip of the magnet in the motor



Widley used in 300, 370, 500, 530, 385,540,555 electric motors







(2) Advantages



1. Voltage showed on screen, easy to monitor



2. Motor manufacturer can use it when magnetizer is needed anytime







(3) Parameter



Voltage:220V+/-10%,50Hz


Weight:78KGS(Without magnetic head)


Dimension: 550mm*460*710mm


Power: 3.5KW (Full loaded)







(4) Feature



1.Using high-voltage oil immersed power capacitors, optional capacitors, long life


2. High accuracy of charging voltage, stable within 0.5%


3. Voltage digital display for easy monitoring


4. There is a control box with a key to prevent misadjustment


5. Easy to manage, high efficiency, can be connected with fully automatic stator machine


6. Charging voltage: 0-1000V, Capacity: 800UF/1200UF/2000UF Optiona



    Efficiency: Charge and discharge 14000 times / 8 hours (voltage 500V)



    Maximum energy storage: 1000J


7. Advantages of plant internal magnetization:



     It can achieve on-demand production, meet the JIT production method,



     reduce management costs, reduce the quality caused by external magnetization and



     easy suction of impurities, armature stuck, long-term placement demagnetization,



     wrong pole installation, etc.







(5) Suggestion



1. It is recommended assigned person in charge of the key



2. It is recommended not to use a long-term power socket, direct connection to the power line
