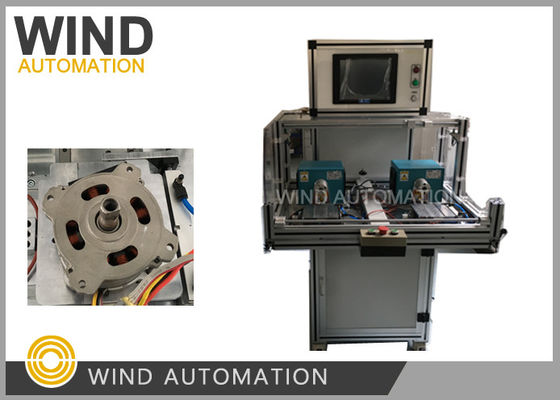

BLDC Garden Sweeper Motor Electric Motor Testing Equipment Dynamometer An Instrument Measures Power
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Test Item: | Armature |
|---|---|---|---|
| Working Station: | Single Station Or Double Station | Automation Type: | Fully Automatic |
| Testing Item Content Display: | Test Result Intuitive Display On Screen One By One | After Sales Service: | Engineer Available For Oversea Service |
| High Light: | high voltage test equipment,armature testing machine |
||
Dynamometer An Instrument Measures The Power Output Of BLDC Garden Sweeper Motor WIND-MTS
(1) Competitive Advantages
a. Quick and accurate identification of rotor (armature) defects in the production process of welding,
winding, finishing, etc., and the location of the fault point, to facilitate the operator to repair the bad
product.
b. For the small resistance of the welding resistance, the system adopts a direct measurement method
and truly reflects the welding condition of the commutator.
c. The voltage of the high voltage test is automatically adjusted and generated, stable and convenient.
d. Up to 3 sets of power frequency withstand voltage test meet the needs of various products.
e. All standard parameters of the equipment are automatically read and set up with a single button.
(2) Technical Data
|
Test description
|
Test Result
|
|
Inter-chip resistance 0.001Ω-1000Ω
|
≤±0.5%
|
|
Welding resistance 0.001mΩ-10mΩ
|
±10μΩ
|
|
180 resistance 0.01Ω-1000Ω
|
≤±0.5%
|
|
Surge 100-2000Vpp
|
±2.5%
|
|
Isolation resistance DC 500V
|
0.1-500MΩ
|
|
Hipot AC 100-2000V
|
0-20mA
|
(3) Equipment environment
Power:AC220V+/-10%, 50Hz
Air pressure: 0.4~0.6MPa
Temperature:0~45℃
(4) Size of Equipment
WIND-ATS-100 930mm*1240mm*560mm
WIND-ATS-200 1040mm*1440mm*600mm
WIND-ATS-300 1050mm*1500mm*600mm
HS Code:9030390000
