Starter Automatic Armature Testing Machine DC Resistance Surge Hipot Tester
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Armature Type: | Starting Motor Armature |
|---|---|---|---|
| Working Station: | Double Station | Automation Type: | Fully Automatic |
| Testing Item Content Display: | Test Result Intuitive Display On Screen One By One | Armature Slots: | 13, 17, 19 (few), 21,23,25,27, 28,29,33slots (common) |
| High Light: | high voltage test equipment,armature tester |
||

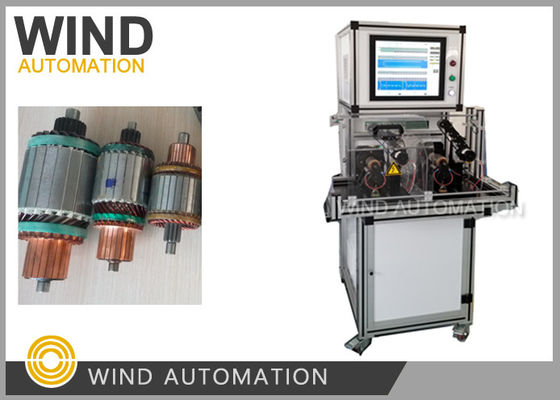

Starter Armature Automatic Testing Machine DC Resistance Surge Hipot Tester WIND-ATS-02
(1) Application
Starter armature upto 36 slots
covering 13, 17, 19 (few), 21,23,25,27, 28,29,33 slots (common)
(2) Advantages
a. Automatic positioning, the operator no need to check initial positioning by hand
b. The biggest starting armature manufacturer ordered over 10pcs and 100% satisfaction
c. Armature commutator bars ≤ 36 bars,
Testing panel cycle time: 8~9s (according to 33bars)
(3) Technical Data
|
Test Item
|
Test Method
|
|
Bar to Bar resistance,0.01mΩ~10mΩ (Out of range display OVER)
|
Four-terminal measurement to ensure accuracy
|
|
Welding resistance,0.001mΩ-10mΩ (Out of range display OVER)
|
Six-terminal measurement to ensure accuracy
|
|
Cross resistance 0.01mΩ-10mΩ
|
Four-terminal measurement to ensure accuracy
|
|
Surge 100-1000V (100V/time) Pulse crest:0.5u sec, Frequency 1~40MHz
|
Standard waveform is Write, OK waveform is Green, NG waveform is Red
|
|
Isolation resistance DC 500V Testing time:1~10s (0.1s/time)
|
Range:1~500MΩ Accuracy: ≤±5%
|
|
Hipot AC 100-1000V
|
Testing time:1~10s (0.1s/time)
|
(4) Main Configuration
15’’ Touch screen Sampling Chip: BB Relay:NAIS High voltage relay:Meder
Pneumatic parts:Airtec
Power: AC 220V,50Hz
Air pressure:0.4~0.6MPa
Temperature:0~45℃
Dimension: 950mm*1250mm*580mm
HS Code:9030390000
