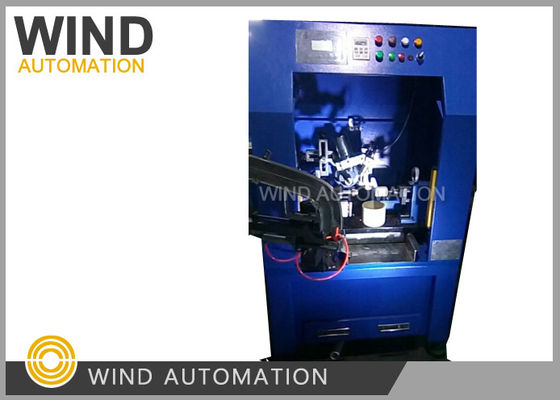

Mica Wire Slotting Slot Insulation Machine Single Chip Control Motor Armature Commutator

China Mica Wire Slotting Slot Insulation Machine Single Chip Control Motor Armature Commutator supplier

Large Image :  Mica Wire Slotting Slot Insulation Machine Single Chip Control Motor Armature Commutator

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-FD-8066

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 35 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Certificate: No
Working Station: One Station Automation Type: Semi Automatic
Commutator Handled: Slotted Type And Hook Type Commutator Surface Slotting Ares: Mica Or Copper Wire
High Light:

motor insulation paper

,

paper inserting machine

Singlechip Control Motor Armature Commutator Mica Wire Slotting Machine







(1) Technical Data



Voltage: three phase 380 V,50Hz



Air source: 0.4 to 0.75MPa



Motor power: 1.1kw



Commutator OD range from 5mm to 130mm



Speed: 2800RPM



Capability in one shift: 1200 pcs



Slot range: 2 to 99 slot







(2) Competitive Advantages



The commutator slotting machine can handle commutator type with slotted type and hook type



commutator with OD range from 5mm to 130mm







(3) Auomated or Semi auto device choise



For slotted type commutator without riser, automated system is suitable,



For hook type commutator, slotting process is before bend the hook end







(4) Attention points



During the commutator slotting process, splashed copper chips are mixed in the air around the controller.



These chips of copper cut the circuit board and components of the controller at all times and cause a



short circuit between the wires! If an abnormal situation occurs during work, immediately stop working and



switch off the power quickly. Then use 4-6kg / cm pressure of dry compressed air blow off the control



board and the drive board copper cutting powder, make sure the circuit board and components without



copper cutting powder, and then restart the work.







Touble shooting:



Question:



It appears that the new commutator slotter is malfunctioning and I believe it is a programming issue. The



unit has been used for production for 5 days until today. For some reason, the plc does not stop the saw



and plate inverter once the last cut has been made. How do we get support from Shanghai Wind to get



this issue resolved?



Answer:



Would you please take a long video to for us to check the problem ' plc does not stop the saw and plate



inverter once the last cut has been made'?







The issue is caused by signal interference, please follow below step to solve it,

1. Switch off the machine, wait for 1 minutes

2. Power on the machine

3. Press ▲ button for 5 seconds to machine intial setting

Mica Wire Slotting Slot Insulation Machine Single Chip Control Motor Armature Commutator



You may take a photo of the screen for us to confirm after you go to the machine intial setting,

To start the operation again, please do the optical detection, below is the steps for 'Optical detection for

initial setting'

1. Press the second ⊙ round button

2. then press ▲ three times

3. and then press +

Mica Wire Slotting Slot Insulation Machine Single Chip Control Motor Armature Commutator




Also there is a video for reference, IMG_5551 Optical detection for initial setting of new commutator type

https://youtu.be/d-U-1ajbiSw
