2KW Inserter Machine Starter Armature Cell Insert Rotor Insulation Paper
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Isolator Type: | S Shape, O Shape, U Shape | Insertion Speed: | 1 Second Per Slot |
|---|---|---|---|
| Material: | DMD, DM, Polyester Film 0.18~0.2mm | Heater Temperature For Paper Shape Forming: | 70 ~ 100 ℃ |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineer Available For Oversea Support |
| Highlight: | motor insulation paper,paper inserting machine |
||

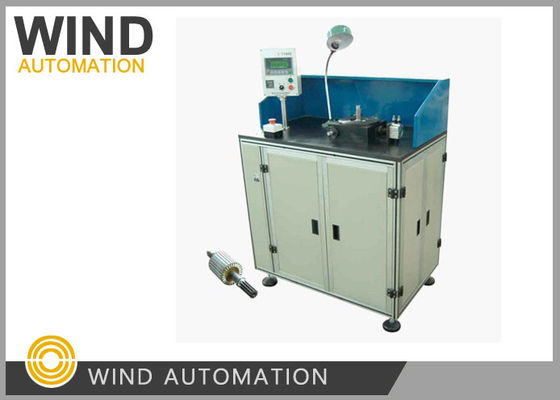

Starter Armature Cell Insulator Insert Rotor Insulation Paper Inserting Machine WIND-ZZ-1
(1) Application
This paper inserting machine WIND-ZZ-1 is for automobile starter motor armature slot insulation, it
automatic forming shaping the s shape cell and insert to starter armature, Wind Automation also supply
machines for different shape such as В-,S-,C-,O-,V-shaped and continuous armature slot insulation
forming and insertion, double station improve the production efficiency.
PLC and touch screen for easy operation.
(2) Parameter
| Supply voltage | 220V+/-10%, 50Hz |
| Air pressure | 0.5~0.7MPa |
| Total power | 2KW |
| Armature Core thickness | <60mm |
| Rotor OD | <80mm |
| Armature Slots | 3~99 slots |
| Dimension | 1100*700*1300mm |
