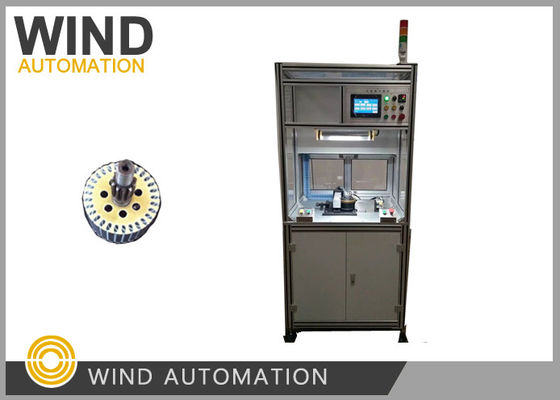

Starter Armature Cell Insulator Insert Rotor Insulation Paper Inserting Machine

Starter Armature Cell Insulator Insert Rotor Insulation Paper Inserting Machine WIND-SZ-1

(1) Application

This paper inserting machine WIND-SZ-1 automatic heating, shaping, cutting off paper and

insertion,automatic indexing

(2) Competitive Advantages

a. Easy operation and quicker change tooling

b. The machine mechanical structure co-work perfectly with electronic system,

  achieve higher stable performance in starter armature manufacturing market

c. Wind Automation insist on using the best part for oversea market

     which can ensure the stable performance,save labor cost

     comparing to paper forming and manual inserting production process

d. User like Ametek put repated order because of its easy opearation and quick change tooling process

(3) Parameter

Armature stack height: Max 100mm

Power Supply: 220V±10% 50Hz

Air source Pressure: 0.5~0.7Mpa

Heating temperater: 70~100℃

Weight: Around 700KGS

Dimension: 1200*650*1500mm

Please click below photo to view video
