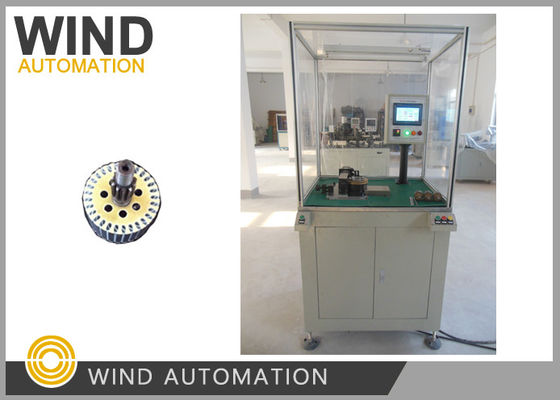

Armature Slot Insulation Machine For Starter Armature Shapes S Slots Insulation
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Insertion Speed: | 1 Second Per Slot |
|---|---|---|---|
| Material: | DMD, DM, Polyester Film 0.18~0.2mm | Servo Motor: | Can Have 1 Servo Or 2 Servo Motors |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineer Available For Oversea Support |
| High Light: | motor insulation paper,inserter machine |
||
Armature Paper Insertion Machine For Starter Armature Shapes S Slots Insulation WIND-SZ-1
(1) Application
This paper inserting machine WIND-SZ-1 automatic heating, shaping, cutting off paper and
insertion,automatic indexing
(2) Competitive Advantages
Efficiency 1 second per slot
Save labor cost comparing to paper forming and manual inserting production process
The edge folding length and insulation paper length can be adjusted
(3) Parameter
Insulation material thickness: 0.18~0.2mm
Armature stack height: Max 100mm
Power Supply: 220V±10% 50Hz
Air source Pressure: 0.5~0.7Mpa
Heating temperater: 70~100℃
Weight: Around 700KGS
Dimension: 1200*650*1500mm
Please click below photo to view video
