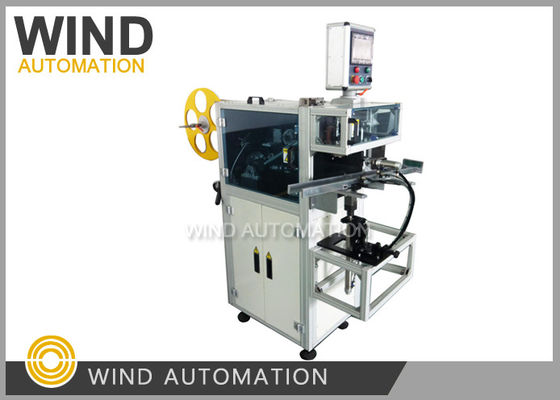

Armature Slot Cell Paper Inserting Machine 0.5 To 0.8 Second Per Slot DC Motor

China Armature Slot Cell Paper Inserting Machine 0.5 To 0.8 Second Per Slot DC Motor supplier
Armature Slot Cell Paper Inserting Machine 0.5 To 0.8 Second Per Slot DC Motor supplier Armature Slot Cell Paper Inserting Machine 0.5 To 0.8 Second Per Slot DC Motor supplier Armature Slot Cell Paper Inserting Machine 0.5 To 0.8 Second Per Slot DC Motor supplier

Large Image :  Armature Slot Cell Paper Inserting Machine 0.5 To 0.8 Second Per Slot DC Motor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-IP-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden pallet suitable for sea or air shipment L910 mm x W880 mm x H1300mm3
Delivery Time: 30 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Insertion Speed: 0.5 To 0.8 Second Per Slot
Material: DMD, DM, Polyester Film(thickness 0.125mm) Cutting Thickness: Below 0.5m
Machine Color: White Or Per Customer Requirement After Sales: Engineer Available For Oversea Support
High Light:

motor insulation paper

,

inserter machine

0.5 To 0.8 Second Per Slot DC Motor Armature Slot Cell Paper Inserting Machine WIND-1P-1







Application:



This paper inserting machine form, cut and insert the insulation paper polyester to armature's slot,



the process is forming, cutting, inserting, indexing to next slot,



repeat the action until all the setted armature slots are finished,



one armature is well inserted,machine automatially place the next armature and repeat the job.







Parameter:



Armature O.D: Ф20-55mm



Length of lamination: Max 60mm



Shaft length: 32~250mm



Shaft O.D: Ф6~Ф20mm



Slot number: 8-24 slots



Commutator O.D: Ф16~Ф50mm



Speed regulation range: 0~60Hz



Length of insulation paper: 15-60mm adjustable



Thickness of insulation paper: 0.1 mm ~ 0.5 mm



Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.



Insulation paper shape: V or edge-folding V



Efficiency: 0.5sec - 0.8sec/per slot, loadingàclampàfeeding paperàunloading



Air source: air pressure: 4~6kg/cm2



Machine power: 1.0KW



Voltage: AC220V±10%, 50/60Hz



Weight: about 400Kg



Dimension : L910 mm x W880 mm x H1300mm3
