CE Commutator Turning Machine Milling Surface Of Commutator Pump Compressor Rotor

China CE Commutator Turning Machine Milling Surface Of Commutator Pump Compressor Rotor supplier

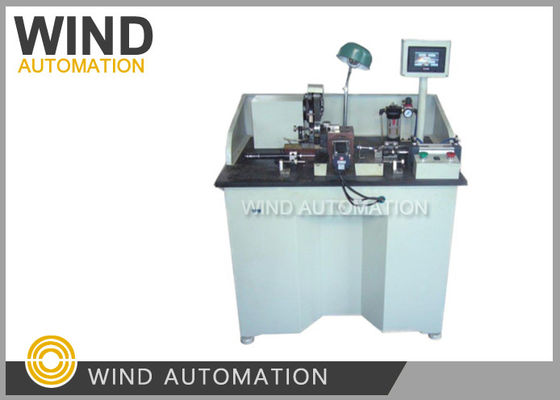

Large Image :  CE Commutator Turning Machine Milling Surface Of Commutator Pump Compressor Rotor

Product Details:

Place of Origin: China
Certification: CE
Model Number: WIND-WGK-2X

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1 Pallet Weight: about 1,100Kg Machine dimension: 1,100mm x 1100 mm x 1,830mm3
Payment Terms: T/T
Detailed Product Description
Condition: New Which Part Turning: Commutator Surface Turning ,Rotor OD Turning
Working Station: One Station Cutter No.: One Cutter
3 Axis: 1 Axis Or 2 Axis Servo Motor Turning Commutator Roundness: < 0.003mm
HS Code: 84581100
High Light:

rotor lathe machine


turning lathe machine

Turning And Milling The Surface Of Commutator Pump Compressor Rotor WIND-WGK-2X




(1) Application:


The turning machine WIND-WGK-2X can turn commutator face and rotor OD,


(Turn commutator face and rotor OD is with different cutter and belt)


The turning machine is a simple rotor turning machine for turning rotor of pump,compressor induction


motor sand, commutator surface of power tool,vacuum cleaner universal motor and so on




(2) Competitive Advantages:


1. With two servo axis,


   X axis control the length of turning left right horizontal position


   Z Axis control the depth of lathing in vertical position


2. Can turn the Commutator OD surface and Aluminum diecasting Rotor OD


3. Economic Type, easy opeartion for developing countries' user including India




(3) Specification:


Belt press time: 0.1s


Cutting time: programmable


Cutting speed: pneumatic adjustable


Speed frequency: 0-60Hz


Air pressure: 0.5-0.7Mpa


Armature shaft diameter: 3-16mm


Shaft length: 50-350mm


Cutter linear speed: 50-1000m/Min


Weight each cutting: 0.02-0.2mm


Surface roughness: 0.25 micron for commutator


Max concentricity: 0.005mm


Max cutting length: 100mm


Weight: about 350kgs


Dimensions: 930 (L)x630(W)x900(H)mm


HS Code:84581100




(4) Below information is needed when you send inquiry:


Armature drawing or rotor drawing




(5) Touble Shooting:





We are facing problem in commutator turning machine.See the attached video (Run not work)




Please re-connect the wire for touch screen and PLC connection:


1. Manually loosen the screw for fixing the wire, and make the wire well connected
2. After that, tighten the screw



Now the same problem repeated.Loosen the screw & connection two time & tighten but problem is as it


is.Give solution.




We conclude it is the wire connection problem,A new connection wire is needed,
We will send 1pc to you by your courier collect no ****

Please click below link to view the video
