Lathe Rotor OD Commutator Turning Machine 84581100 HS Code WIND-WGK-2X

China Lathe Rotor OD Commutator Turning Machine 84581100 HS Code WIND-WGK-2X supplier

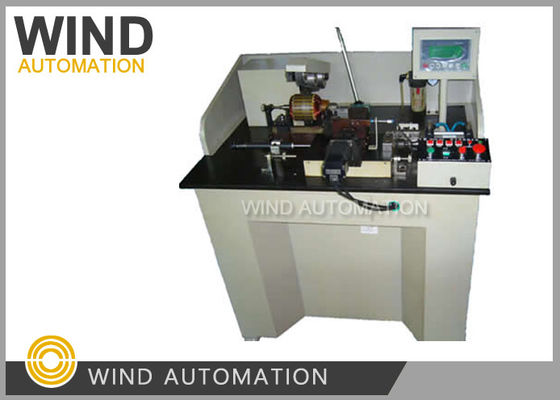

Large Image :  Lathe Rotor OD Commutator Turning Machine 84581100 HS Code WIND-WGK-2X

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-WGK-2X

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1 Pallet Weight: about 1,100Kg Machine dimension: 1,100mm x 1100 mm x 1,830mm3
Payment Terms: T/T
Detailed Product Description
Condition: New Which Part Turning: Commutator Surface Turning ,Rotor OD Turning
Working Station: One Station Cutter No.: One Cutter
3 Axis: 1 Axis Or 2 Axis Servo Motor Turning Commutator Roundness: < 0.003mm
HS Code: 84581100
High Light:

rotor lathe machine

,

commutator undercutting machine

Easy Operation Lathe Rotor OD Commutator Face Turning Machine Hot In India WIND-WGK-2X







(1) Application:



The turning machine WIND-WGK-2X can turn commutator face and rotor OD,



(Turn commutator face and rotor OD is with different cutter and belt)



The turning machine is a simple rotor turning machine for turning rotor of pump,compressor induction



motor sand, commutator surface of power tool,vacuum cleaner universal motor and so on







(2) Competitive Advantages:



1. With two servo axis,



   X axis control the length of turning left right horizontal position



   Z Axis control the depth of lathing in vertical position



2. Can turn the Commutator OD surface and Aluminum diecasting Rotor OD



3. Economic Type, easy opeartion for developing countries' user including India







(3) Specification:



Belt press time: 0.1s



Cutting time: programmable



Cutting speed: pneumatic adjustable



Speed frequency: 0-60Hz



Air pressure: 0.5-0.7Mpa



Armature shaft diameter: 3-16mm



Shaft length: 50-350mm



Cutter linear speed: 50-1000m/Min



Weight each cutting: 0.02-0.2mm



Surface roughness: 0.25 micron for commutator



Max concentricity: 0.005mm



Max cutting length: 100mm



Weight: about 350kgs



Dimensions: 930 (L)x630(W)x900(H)mm



HS Code:84581100







(4) Below information is needed when you send inquiry:



Armature drawing or rotor drawing







Please click below link to view the video

https://vimeo.com/126014434
