2 Axis Servo Motor Commutator Turning Machine Delta Servo Motor Controlled

China 2 Axis Servo Motor Commutator Turning Machine Delta Servo Motor Controlled supplier

Large Image :  2 Axis Servo Motor Commutator Turning Machine Delta Servo Motor Controlled

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-CT-TH4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1 Pallet Weight: about 1,100Kg Machine dimension: 1,100mm x 1100 mm x 1,830mm3
Payment Terms: T/T
Detailed Product Description
Condition: New Which Part Turning: Commutator Surface Turning ,can Also Turn The Commutator Raisor
Working Station: One Station Cutter No.: One Cutter
3 Axis: 2 Axis Servo Motor Turning Commutator Roundness: < 0.003mm
HS Code: 84581100
High Light:

rotor lathe machine

,

turning lathe machine

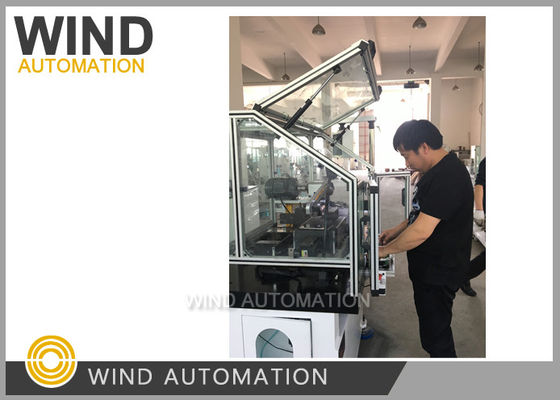

Delta Servo Motor Controlled Commutator Turning Surface Lathing Machine WIND-CT-TH4







Application:



Small fractional horsepower motor armatures, starter armatures commutator,



The commutator turning process is a important motor manufacturing procedure always after welding







Advantages:



1.This machine's cutter movement and turning are controlled by Delta servo motor device.



2. This machine's main standard parts are imported parts.



3. This machine is controlled by two-axis servo motor through ball screw precision control longitudinal



    feed, first rough turning, then precise turning, the number of cutting can be set on the touch screen



    can be arbitrarily set (4 times in total) and each feed Value (minimum accurate to 1um).







Specification:



1. Roundness < 0.003mm



2. Surface roughness



3. Armature OD 20~80mm



4. Shaft length:32~250mm (If longer need custom made)



5. Shaft Diameter: 2~18mm (can be custom made)



6. Commutator OD: 4.3~60mm



7. Stack OD: 20~110mm



8. Cutting amount:Rough cut Max0.20mm



9. RPM modulate: 0~60Hz



10. Cutter unit: 1um~0.5mm and speed adjustable



11. Cutting length:Max50mm



12. Cutting times: X axis can be setted up to 4times, Z axis 4times can be setted up to 4times



13. Air source: 5~7 MPa



14. Power source 220V 50/60Hz



15. Machine Power: 2.5kw







Question and Answer:





1. Is it possible to process both type of armatures using one machine,or it requires different



    tooling?



    Yes, you can use one machine and it requires two different kind of V shape Diamond fixture.





2.  Does the turning machine have a memory with pre-set programmes for different armatures?


     No, when you change to a new type armature, you need to adjust the cutter position.







Please click below link to view the video in an automatic line

https://youtu.be/whFKJWcw0lg
