2.5Kw Armature Commutator Turning Machine One station Belt Press
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Certificate: | Main Parts CE |
|---|---|---|---|
| Working Station: | One Station | Machine Color: | White Or Accordingly To Customer Requirement |
| 3 Axis: | 2 Axis Cutter Feeder Servo Motor | Turning Commutator Roundness: | Commutator < 0.003mm Rotor <0.01mm |
| HS Code: | 84581100 | ||
| High Light: | rotor lathe machine,turning lathe machine |
||

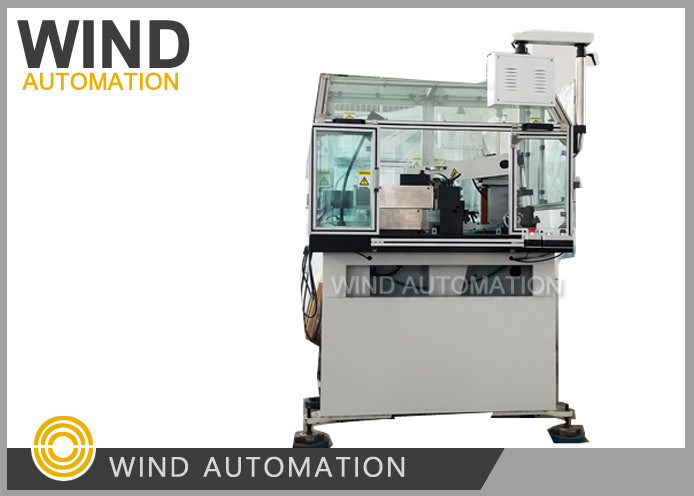

Armature Commutator Outside Diameter Surface Turning Lather Machine Belt Press WIND-CT-TH3B
Armature Lathe machine Application:

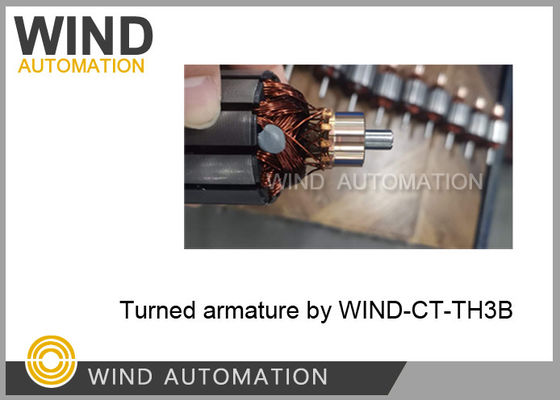

The lathe turning machine WIND-CT-TH3B is precision lathing device for turning the external OD of armature commutator,
the slip ring copper,the excircle of rotor iron cores,
| two axis Delta servo device control | The two axis servo device work with screw rod achieve absolute position control, to get precise turned rotor OD with tolerance under 0mm to -0.03mm~-0.05mm |

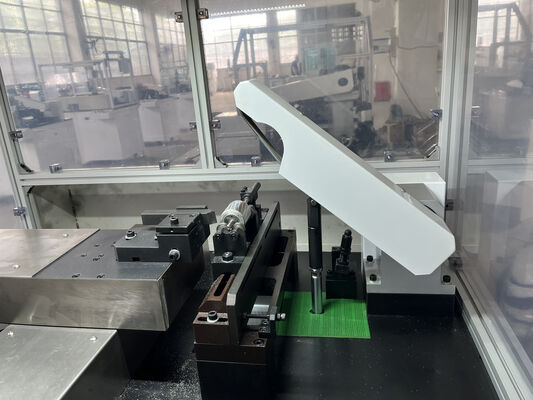

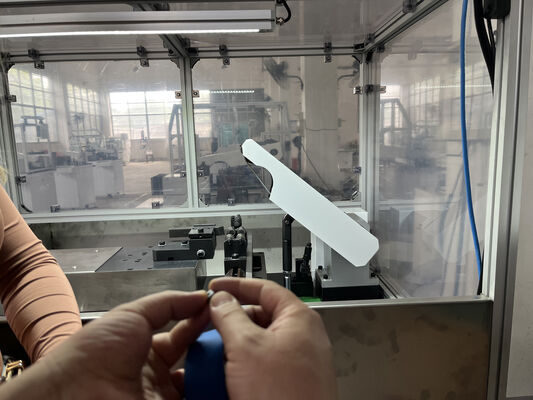

| Drive the armature rotor with V holder, belt and ball bearing | The holding device of machine WIND-CT-TH3B for holding your Rotor OD have two side ball bearing device which prevent shaft from wear |
| Turn commutator OD, aluminum rotor surface, Slip ring face | No need to do oil lubrication during aluminum rotor turning |
Turning machine Competitive Advantages:
1.Advanced design, appealing design and excellent performance for aluminum rotors, commutators,
2. Two servo control the turning to acheive absolute turning position
3. Main parts adopt imported parts
4. Machine have high efficiency and strong reliability
5. This machine turning precison passed inspection of respected well know motor manufacturer for surface finish and slip ring run-out,
Specification:
| Roundness: | ≦0.003mm |
| Surface roughness: | ≦Ra0.40 |
| Rotor outer diameter: | Ф20-Ф100mm |
| Rotor shaft length: | 32-250mm |
| Rotor shaft diameter: | Ф3-Ф22mm |
| Commutator outer diameter: | Ф4.3-Ф50mm |
| Turning capability: | rough turning Max0.20mm diameter |
| Speed amplitude modulation: | 0-60Hz |
| Feeding unit: | 1μm-0.5mm arbitrary |
| Cutting length: | Max80mm |
| Feeding speed: | Stepless adjustable |
| Control mode: | stepping, automatic |
| Operation method: | Touch screen operation |
| Air source pressure: | 5-7kg/cm² |
| Turning times: | 1-4 Any setting |
| Fixture: | Diamond V-shaped Frame |
| Total power: | 2.5Kw |
| Power source: | AC220V 50/60Hz |
| Weight: | about 500Kg |
| Dimensions: | 1100×850×1800mm³ |
Diamond Turning Tool advantages:
1. Comapring to Alloy CNC turning tool (carbide), turning machine's diamond tool is advanced,
Diamond turning tool is what most Chinese motor manufacturers are using as diamond tool
can achieve better shining and micro finish after lathing and turning the copper surface
Alloy CNC turning tool carbide is only suitable for aluminum iron alloy surface product turning
2. The holding device of turning machine WIND-CT-TH3B for holding your Rotor OD have
two side ball bearing device which prevent shaft from wear
3. There was a German customer who used this device for over 10year in German and Austria,
and still purchase the diamond turning tool from us
