2.5KW Commutator Face Roundness Turning Machine Armature Com Fine Lathe

China 2.5KW Commutator Face Roundness Turning Machine Armature Com Fine Lathe supplier
2.5KW Commutator Face Roundness Turning Machine Armature Com Fine Lathe supplier 2.5KW Commutator Face Roundness Turning Machine Armature Com Fine Lathe supplier

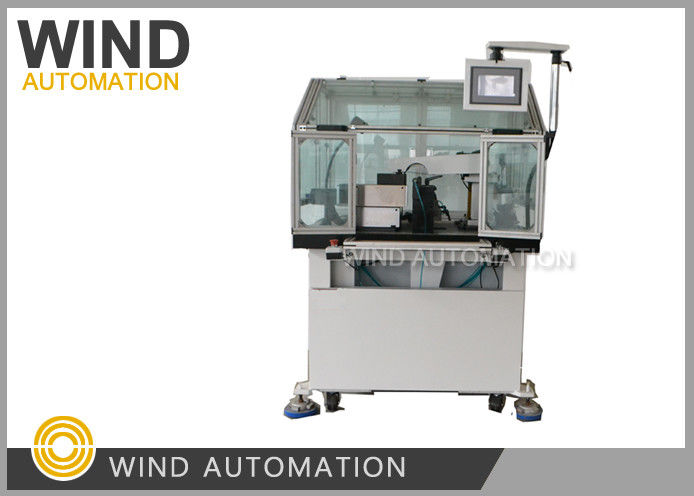

Large Image :  2.5KW Commutator Face Roundness Turning Machine Armature Com Fine Lathe

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-CT-TH4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1 Pallet Weight: about 1,100Kg Machine dimension: 1,100mm x 1100 mm x 1,830mm3
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Certificate: Main Parts CE
Working Station: One Station Machine Color: White Or Accordingly To Customer Requirement
3 Axis: 2 Axis Servo Motor Turning Commutator Roundness: < 0.003mm
Cutter Number: One Cutter Or Two Cutters HS Code: 84581100
High Light:

rotor lathe machine

,

turning lathe machine

Commutator Face Roundness Turning Machine Armature Com Fine Lathe WIND-CT-TH4







Application:



The lathe turning machine WIND-CT-TH4 is designed to finish turn the commutator brush track area of



relatively small fractional horsepower motor armatures, starter armatures commutator.





Commutator turning place



After welding, can turn the commutator OD and riser OD of



automotive armature





Cutter number



One cutter





Servo axis  device



With two servo axis







X axis control the length of turning left right horizontal  position



Z Axis control the depth of lathing in vertical position









Advantages:



1.Precise with two axis Delta servo device control (Delta have quick and good after-service if any



   question)



2.Delta PLC



3.Delta inverter



4. ABB 3Phase AC motor



5.Japan belt and coupling



6.Diamond V holder and Diamond cutter







Specification:



1. Roundness < 0.003mm



2. Surface roughness



3. Armature OD 20~80mm



4. Shaft length:32~250mm (If longer need custom made)



5. Shaft Diameter: 2~18mm (can be custom made)



6. Commutator OD: 4.3~60mm



7. Stack OD: 20~110mm



8. Cutting amount:Rough cut Max0.20mm



9. RPM modulate: 0~60Hz



10. Cutter unit: 1um~0.5mm and speed adjustable



11. Cutting length:Max50mm



12. Cutting times: X axis can be setted up to 4times, Z axis 4times can be setted up to 4times



13. Air source: 5~7 MPa



14. Power source 220V 50/60Hz



15. Machine Power: 2.5kw







Question and Answer:





Question:



Is it possible to process both type of armatures using one machine,or it requires different tooling?



Answer:



Yes, you can use one machine and it requires two different kind of V shape Diamond fixture.

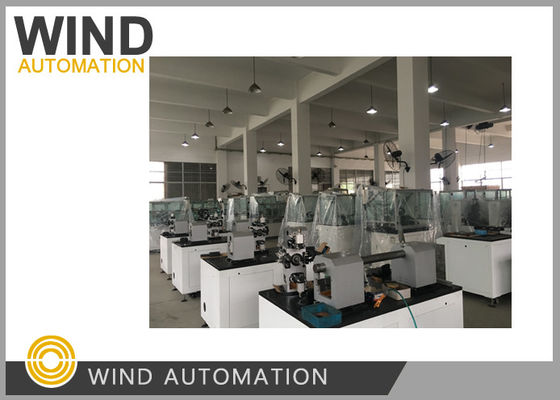

2.5KW Commutator Face Roundness Turning Machine Armature Com Fine Lathe




Question:



Does the turning machine have a memory with pre-set programmes for different armatures?



 Answer:

No, when you change to a new type armature, you need to adjust the cutter position.



The lathe turning machine is designed to finish turn the commutator brush track area of



relatively small fractional horsepower motor armatures, starter armatures commutator.







Please click below link to view the video

https://youtu.be/X9jOA-qUNX8
