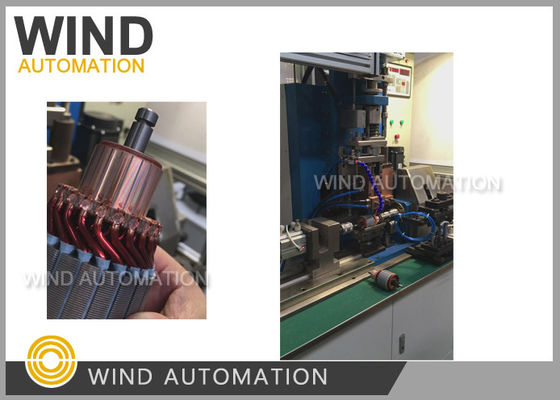

Armature Conductor Soldering Stator Winding Machine For Starter Commutator Wire Spot Welding
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Welding Diameter: | 4mm Round Wire Or 3*6mm Rectangular Wire | AC Power Supply: | Rated Capacity 125kvA |
|---|---|---|---|
| Welding Control Device: | DC Welding Controller And Transformer | Cooling Method: | Industrial Cooling Device |
| Adjustment Easy: | The Welding Operation And Setting Is Easy For Operator | Welding Big Wire Diameter Range: | Round Wire,Flat Wire |
| Gross Weight: | 520KGS Including Package Pallet | ||
| High Light: | arc welding machine,ultrasonic welding machine |
||
Armature Conductor Soldering For Starter Commutator Wire Spot Welding WIND-125-DNZ
(1) Application:
Commutator spot welding machine WIND-125-DNZ is dedicated machine for welding
the starting motor armature commutator with round wire or flat wire(rectangular wire)
(2) Advantages:
1. This machine can ensure tungsten rod still in the middle of the commutator spot
2. This welding machine use photoelectric tracking method color difference detection device avoid mica
3. This fusing machine's stable DC current voltage and short welding time
ensure the wonderful welding quality
(3) Configuration:
1. Hot staking machine with PLC and with Japan Miyachi CT-110 welding control device.
2. Three segments electrification method, with current slow increasing and slow dropping function.
(4) Fusing machine Parameter:
| Power Supply | 380V±10% 50Hz |
| Air source Pressure | 0.5~0.7Mpa |
| Max wire size | 4mm round wire or 3*6mm rectangular wire |
| Cooling Method | Industrial water cooling device |
| PLC and servo motor | Mitsubishi |
| Welding power supply | 125KVA DC welding controller and transformer |
| Cooling device | Industrial cooling device |
| HMI | WEINVIEW touch screen |
| Air system | Airtac cylinder,SMC valve |
(5) What data is required when you send inquiry:
1. Armature size including armature OD, Shaft diameter and length
2. Wire diameter range
Please click below commutator welding machine fusing head picture to view video
