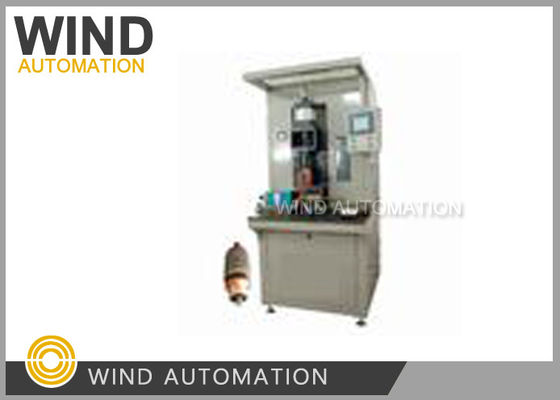

CE Hot Staking Machine Armature Commutator Fusing Machine Spot Welding
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Welding Diameter: | 2.5~10mm2 | AC Power Supply: | Rated Capacity 75kvA |
|---|---|---|---|
| Welding Control Device: | Japan Miyachi CT-110 | Cooling Method: | Internal Circular Water Cooling |
| Adjustment Easy: | The Welding Operation And Setting Is Easy For Operator | Welding Big Wire Diameter Range: | Round Wire,Flat Wire |
| Gross Weight: | 520KGS Including Package Pallet | ||
| High Light: | laser welding machine,ultrasonic welding machine |
||
Armature Hotstaking Commutator Fuser Welder Spot Welding With AC Power Supply WIND-75KW-CS
(1) Application:
Auto starting motor armature with round wire or flat wire(rectangular wire)
(2) Advantages:
1. This machine is with AC power supply WIND-75KW-CS, econmic type
2. This welding machine is with one fusing head, fuse one point per time
3. This fusing machine is high efficiency, 23 slots armature cost 45s' to fuse including loading/unloading
(3) Configuration:
1. Hot staking machine with PLC and with Japan Miyachi CT-110 welding control device
2. Three segments electrification method, with current slow increasing and slow dropping function
(4) Fusing machine Parameter:
Power Supply : 3Φ-380V±10% 50Hz
Air source Pressure: 0.5~0.7Mpa
Adjustment Grades: 8 grades
Rated capacity:75kvA (according to copper wire size)
Available section area of wire: 2.5~10mm2
Cooling Method: internal circular water cooling
Suitable for auto starting motor commutator with big wire diameter and armature coil conductor.
Commutator wire spot welding can weld the armature with round wire or flat wire(rectangular wire)
(5) What data is required when you send inquiry:
1. Armature size including armature OD, Shaft diameter and length
2. Wire diameter range
Please click below commutator welding machine fusing head picture to view video
