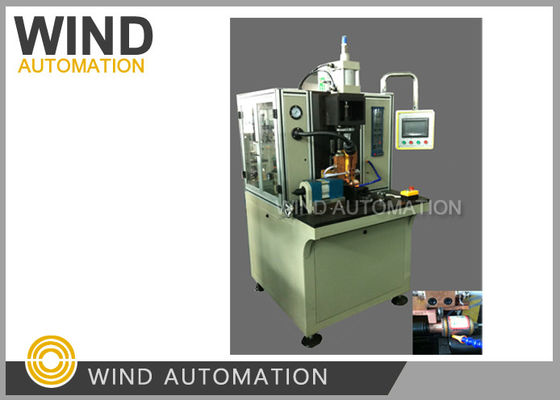

Hotstaking Commutator Fusing Machine Welder Spot Welding With AC Power Supply
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Auto Starting Motor Armature | AC Power Supply: | Rated Capacity 75kvA |
|---|---|---|---|
| Fusing Wire Size: | 2.5~10mm2 | Welding Cooling Device: | With A Inside Cycling Water Cooling Device |
| Adjustment Easy: | The Welding Operation And Setting Is Easy For Operator | Welding Big Wire Diameter Range: | Round Wire,Flat Wire |
| Gross Weight: | 520KGS Including Package Pallet | ||
| High Light: | arc welding machine,ultrasonic welding machine |
||
Armature Hotstaking Commutator Fuser Welder Spot Welding With AC Power Supply WIND-75KW-CS
(1) Application:
Auto starting motor armature with round wire or flat wire(rectangular wire)
(2) Advantages:
1. This machine is with AC power supply WIND-75KW-CS, econmic type
2. This welding machine is with one fusing head, fuse one point per time
3. This fusing machine is high efficiency, 23 slots armature cost 45s' to fuse including loading/unloading
(3) Configuration:
1. Hot staking machine with PLC and with Japan Miyachi CT-110 welding control device
2. Three segments electrification method, with current slow increasing and slow dropping function
(4) Fusing machine Parameter:
Power Supply : 3Φ-380V±10% 50Hz
Air source Pressure: 0.5~0.7Mpa
Adjustment Grades: 8 grades
Rated capacity:75kvA
Available section area of wire: 2.5~10mm2
Cooling Method: internal circular water cooling
Suitable for auto starting motor commutator with big wire diameter and armature coil etc. wire spot
welding.
Can weld the armature with round wire or flat wire(rectangular wire)
(5) What data is required when you send inquiry:
1. Armature size including armature OD, Shaft diameter and length
2. Wire diameter range
Please click below commutator welding machine screen picture to view video
