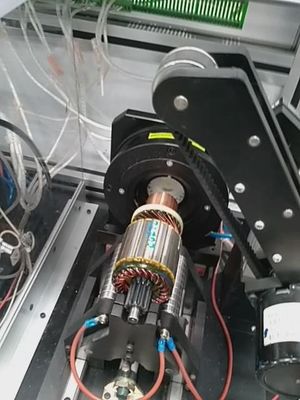

Automotive Car Motor Starter Armature Testing Equipment Auto Positioning 23 Slots For Componente Do Motor De Arranque

Now we produce armatures with 29 slots, but we know some armatures with 33 slots and even 38 slots. Does the machine has capacity to test armatures with this quantity of slots?


Standard machine WIND-ATS-02 can test with most 36slots only



All the slots testing data will be displayed separatedly with identification on the screen?


Yes



Is it possible to have three languages on the machine? Portuguese, English and Mandarin


English and Mandarin


Please describe the tests that the machine is able to do



1. Bar to bar resistance (Inter-chip resistance of two commutator bars)
2. Welding resistance (To check the welding quality, the smaller the better)
3. 180° Cross resistance (Bar to bar resistance of commutator which is 180° angle with opposite side)
4. Surge (Between the turns of the coils, comparing waveforms)
5. Isolation resistance (Resistance of the coils and stack core)
6. Hi-pot (High voltage between the coils and armature stack core)



How many different recipes we can setup and save on the machine?


510 sets recipes



Please describe the calibration procedure, short description


Use standard resistance to calibrate



Is there any kind of restriction due to the size of the armature?



Use different fixture to adapt to



What is the average time for one test of one armature?



About 15s' (including initial auto positioning)


Please decribe to us the main parts brand on the machine



Sampling Chip: BB(USA import)
Relay:NAIS(Jpan Panasonic)
High voltage relay:Meder (Germany import)
Pneumatic parts:Airtac


What is the warranty time and terms?



15 months from date of B/L,please refer to attached after sales details



Explain to us the welding resistance test



Six wiresl balancing measurement method to ensure accuracy



Please tell us the size na weight of this machine



Net weight 150KG Dimension Dimension: 950mm*1250mm*580mm



What is the Installed power of the armature tester?



1500W



Is the machine 50Hz or 60Hz?



50Hz or 60Hz, It's OK , no effect of testing



What is the voltage?



If I put an armature with short circuit, after the machine refuses it, do I have to resetup the machine?



You don't have to reset up, you can test the next armature directly



Does the machine has conection to the net? With this we can save the testing data in our server, make remote access....



Yes,machine can have this function



Is it possible to add working instruction in the machine? Like a PDF file or similar



Yes



Is it possible to print the test results?



Yes, you need a printer by yourself



Do we have the possibility to chose which test we want to make?



Yes, you can choose which test item to make



Does the armatue anaylser has a communication port that is able to connect to a fiber laser printing machine and send serial number to be printed on the part?



Yes, machine can have this function
