Automatic Coil Making Machine AC Induction Motor Pump Stator

China Automatic Coil Making Machine AC Induction Motor Pump Stator supplier

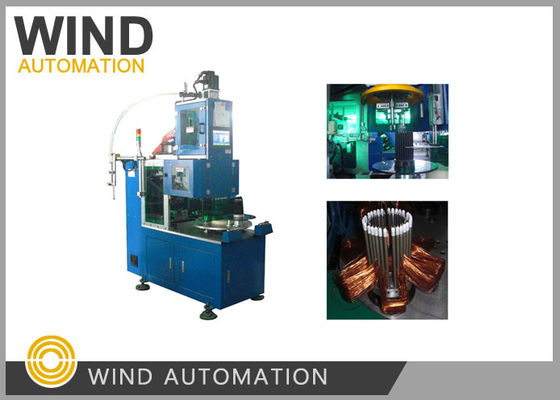

Large Image :  Automatic Coil Making Machine AC Induction Motor Pump Stator

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-100-VW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea shipment
Delivery Time: 60 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Certificate: Main Parts CE
Working Station: Single Station With Two Rotation Heads Machine Color: White Or Per Customer Requirement
After Sales: Engineers Available To Service Machinery Overseas
High Light:

coil making machine

,

stator coil winding machine

AC Induction Motor Pump Stator Automatic Coil Winding Making Machine With Servo System

WIND-100-VM







Application:



Winding Motors of vending machines, wheelchairs, medical beds,  treadmills,pump, compressor and so on





Winding head



1winding head, 2 turnable station,fully servo system for coils winding





Min. Wire Gauge



Copper wire 0.1mm, aluminum wire should be bigger as aluminum wire is



easy broken





Main winding, aux winding



Changing tooling is easy for AC motor main winding and aux winding



different winding way









Advantages:



1.Save copper wire and protect wire from damaging comparing to simple CNC winder



2.Chinese Top motor manufacturers use the machine over 5 years, had good comments



3. Save labor cost







Specification:


Wire diameter:0.2~1.2mm


Min stator ID:40mm


Max stator OD:175mm


Core length:40-130mm


Power:380V, 50/60KW


Weight: about 1100kgs


Dimensions: 1900 (L)x850 (W)x3200(H)mm







Motor winding machine manufacturer sample needed:


1. Stator stack samples each 5pcs

2. Copper wire gauge each 1roll

3. Stator lamination drawing and winding drawing




Please click below picture to view video



Automatic Coil Making Machine AC Induction Motor Pump Stator
