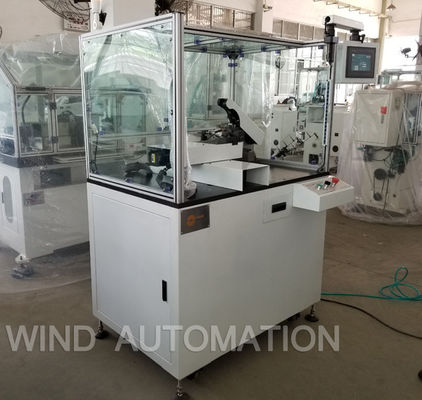

Commutator Surface Precise Lathe Rotor OD Turning Machine WIND-CT-TH3B

ROTOR WITH INJECTION, OSCILLATING SHAFT AND EXHAUST SHAFT

SurfaceTurning Machining Machine Application:

The lathe turning machine WIND-CT-TH3B is designed to turn the Plane Commutator surface

Rotor OD and Slip Ring

Turning Machine Lathe Surface Competitive Advantages:

1.Precise with two axis Delta servo device control

  (Delta have quick and good after-service if any question)

  The two axis servo device work with screw rod achieve absolute position control,

   to get precise turned rotor OD with tolerance under 0mm to -0.03mm~-0.05mm,

2.Delta PLC

3.Delta inverter

4. Airtac cylinder

5.Diamond V holder and Diamond cutter

  a. Comparing with Alloy CNC turning tool (carbide),Diamond turning tool is what most Chinese

      motor manufacturers are using as diamond tool can achieve shining and micro finish

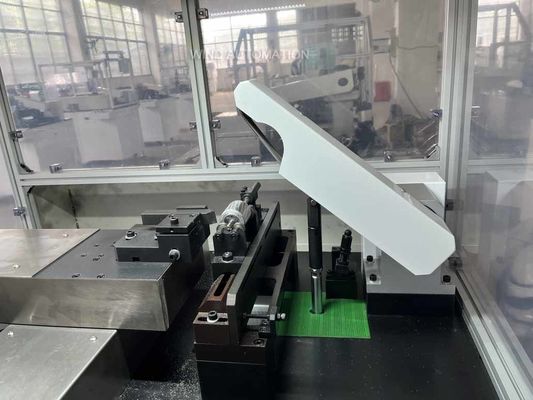

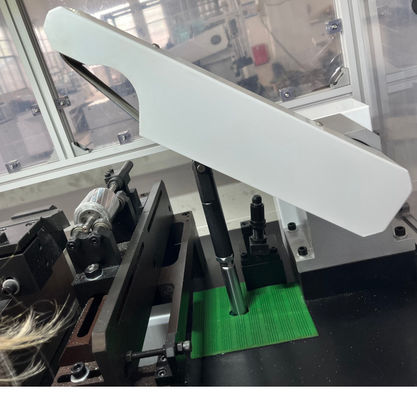

  b. The holding device of machine WIND-CT-TH3B for holding your Rotor OD have two side ball bearing

      device which prevent shaft from wear

 c. For turning aluminum rotor OD, it with belt press and ball bearing to ensure the concentricity

    and prevent the shaft from abrasion,

6. A German customer who used 1st generation turning machine for over 14 years in German and Austria

    and still purchase diamond cutter from us

Lathe Machine Specification:

1. Roundness < 0.003mm

2. Surface roughness <Ra0.40

3. Armature OD 20~80mm

4. Shaft length:32~250mm (If longer need custom made)

5. Shaft Diameter: 2~18mm (can be custom made)

6. Commutator OD: 4.3~60mm

7. Stack OD: 20~90mm

8. Cutting amount:Rough cut Max0.20mm

9. RPM modulate: 0~60Hz

10. Cutter unit: 1um~0.5mm and speed adjustable

11. Cutting length:Max50mm

12. Cutting times: X axis can be setted up to 4times, Z axis 4times can be setted up to 4times

13. Air source: 5~7 MPa

14. Power source 220V 50/60Hz

15. Machine Power: 2KW
