Induction Motor Stator Coil Winding Insertion Machine Fully Automatic Ventilador Ocilante

China Induction Motor Stator Coil Winding Insertion Machine Fully Automatic Ventilador Ocilante supplier

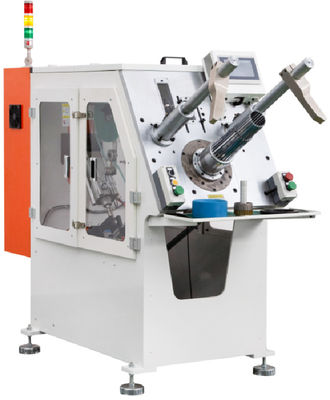

Large Image :  Induction Motor Stator Coil Winding Insertion Machine Fully Automatic Ventilador Ocilante

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-90-CWI

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 60 Working days
Payment Terms: T/T
Detailed Product Description
Motor Stator Coil Winding: With Servo System Compare To Common Coil Winder: Save Copper Wire
Wire Gauge: Min. 0.1mm (AWG38) Automation Type: Fully Automatic Vertical Winding With Rotary Device
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas

Fully Automatic Induction Motor Stator Coil Winding Insertion Ventilador Ocilante WIND-90-CWI





This machine is used to do stator coil and wedge inserting. It is controlled by servo motor. All the actions will be done by machine automatically, except for loading and unloading.

(1) Specification

Stack length Max 120mm
Stator ID 20~100mm
Stator OD Max 160mm
Tooling stroke Max 70mm
Suitable wire material Copper/Aluminium wire
Slot number 8~48slots
Power supply 380V 50/60HZ
Weight 850KG
Dimension 1850x650x1700mm


(2) Application
This type of machine is suitable for various types of AC motor, induction motor stators.

(3) Feature
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required

Servo Control Induction Motor Stator Winding Inserting Machine







Please click below link to view video



Induction Motor Stator Coil Winding Insertion Machine Fully Automatic Ventilador Ocilante
