Induction Motor Stator Coil Winding Machine Fully Automatic Ventilador Ocilante

China Induction Motor Stator Coil Winding Machine Fully Automatic Ventilador Ocilante supplier

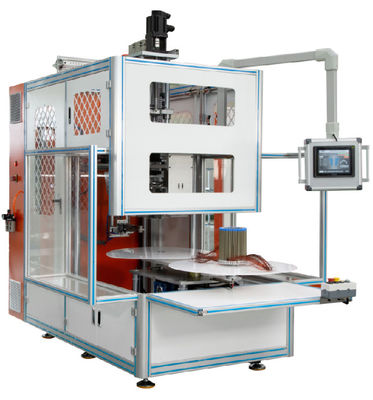

Large Image :  Induction Motor Stator Coil Winding Machine Fully Automatic Ventilador Ocilante

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-100-VW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 60 Working days
Payment Terms: T/T
Detailed Product Description
Motor Stator Coil Winding: With Servo System Not CNC Type Compare To Common Coil Winder: Save Copper Wire
Wire Gauge: Min. 0.1mm (AWG38) Automation Type: Fully Automatic Vertical Winding With Rotary Device
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas

Fully Automatic Induction Motor Stator Coil Winding Ventilador Ocilante WIND-100-VW







Application:



Induction motor pump compressor stator automatic coil winding coil making machine with servo system



WIND-100-VW Automatic vertical winding machine for winding vending machines, wheelchairs, medical



beds, and treadmills motors







Advantages:





✓ Material Saving



Save cooper wire because  don't need to connect separate coils



✓Stator narrow slot



Constant winding quality suitable for high filling rate stator winding insertion



with slot width above 1.36mm





✓Labor cost Saving



Stator winding machine wind coil directly to windings transfer former, operator



no need to put the coils in place, instead they just need to put on transfer



former on the winding insertion machine





✓ Better winding quality





Comparing to common cnc winding making machine, WIND-100-VM not only



save copper wire, but also ensure the winding quality during insertion to



stator,there winding wires don't break during insertion operation process









Parameter:



Wire diameter:0.2~1.2mm


Min stator ID:40mm


Max stator OD:175mm


Core length:40-130mm


Power:380V, 50/60KW


Weight: about 1100kgs


Dimensions: 1900 (L)x850 (W)x3200(H)mm



China Local well known respected motor manufacturers user's feedback






WIND-100-VW vertical winding machine wind the coil and put coil to transfer form

(the transfer form with wire can be embered in stator in next operation process wedge and coil insertion

machine)

It is feature is high efficiency,save copper wire and suitable for small slot opening stator with high filling

rate, also the wire don't break during insertion operation.




Please click below link to view video

Induction Motor Stator Coil Winding Machine Fully Automatic Ventilador Ocilante
