2 Pole Estatores Fully Automatical Winding Equipment Universal Stator Winder

China 2 Pole Estatores Fully Automatical Winding Equipment Universal Stator Winder supplier

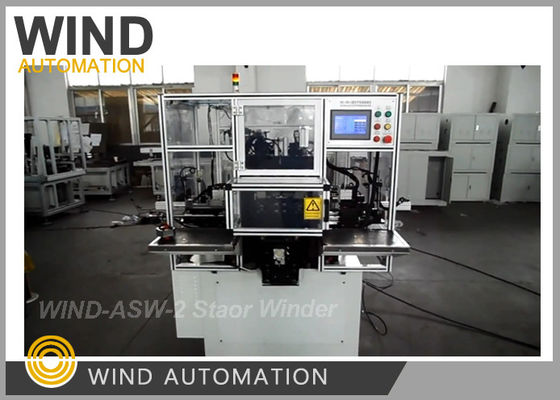

Large Image :  2 Pole Estatores Fully Automatical Winding Equipment Universal Stator Winder

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-ASW-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 60 Working days
Payment Terms: T/T
Detailed Product Description
Coil Winding: High Slot Filling Rate Two Pole Stators Auto Type: Fully Automatic
Operator Job: Just Load Stack And Unload Wound Stator Station: Two Working Station
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas

Two Pole Electric Motor Stator Field Coil Automatic Winding Machine WIND-ASW-2







Application:



Two Poles Inslot Stator covering mixer, grinder, power tool ,vacuum cleaner filed coil winding.







Competitive Advantages:



1. Fully automatical stator winding machine,Automatically load the tooling, clamp the wire



2. Automatically winding for high slot filling rate two pole stators



3. Easy Operation, the operator only need to load stator on fixture and unload wound stator



3. Very popular for high volum output motor manufacturers







Parameter:



Stack height 10-70mm



Stator ID 20-60mm


Stator OD 50-130mm


Stator poles No. 2


Wire diameter 0.15-1.3mm


Lubrication mode: continuous lubrication oiling machine


AC380V, 50/60Hz, 4.5KW, air pressure 57kg/cm2


About 1200kgs, 1500 x 2100 x 1650mm


NCM No / HS Code:8479811000






Please click below picture to view stator wider video



2 Pole Estatores Fully Automatical Winding Equipment Universal Stator Winder
