WIND-ATS-310 Universal Motor Armature Testing Equipment Welding Resistance

China WIND-ATS-310 Universal Motor Armature Testing Equipment Welding Resistance supplier

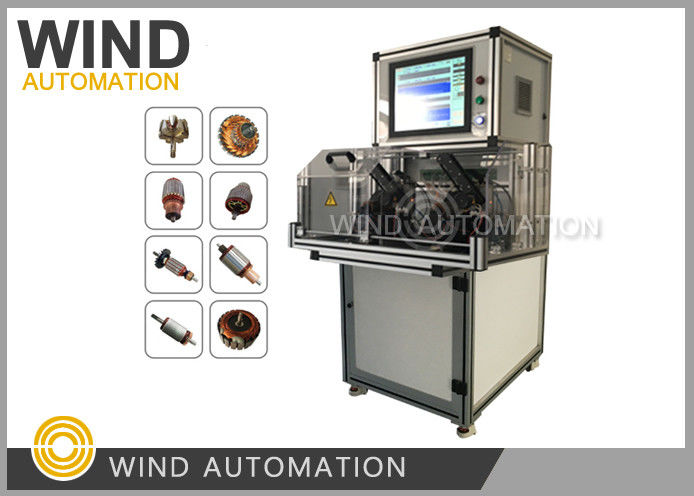

Large Image :  WIND-ATS-310 Universal Motor Armature Testing Equipment Welding Resistance

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-ATS-310

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea shipment
Delivery Time: 20 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Testing Product: Armature With Commutator Bars Below 96
Working Station: Two Station Machine Color: White Or Per Customer Requirement
After Sales: Engineers Available To Service Machinery Overseas Certificate: Main Parts CE

Universal Motor Rotor Testing Machine Welding Resistance Tester Double Station Armature Testing Panel Rotor Analyser Commutator Bars Below 24 Bar WIND-ATS-310







(1) Application



This armature testing machine test the bar-bar resistance, welding resistance, dielectric strength(Hi-pot),



insulation resistance and turn-turn insulation.



The loading and testing mode could be shifted by sliding the safety cover.



The testing panel starts testing once the safety cover being slid upon the working station.







(2) Competitive Advantages



1.Test armature up to 96bars commutator



2. Double working station can be shited easily by move the safety cover







(3) Technical Data



WIND-ATS-310 Number of bars :≤24
Test items Test Description Test results
  0.001Ω-1000Ω ≤±0.5%Full scale
Inter-chip resistance Automatic environment temperature compensation
  0.001mΩ-10mΩ ±10μΩ
Welding resistance
  0.01Ω-1000Ω ≤±0.5%Full scale
180 resistance Automatic environment temperature compensation
  100-3000Vpp ±2.5%
Surge (Max 24 sets waveform)
  DC 500V /1000V 1-1000MΩ
Isolation resistance ≤±5% Full scale
  AC 100-3000V 0.1mA-10mA
Hipot(include arc detection) (2set high pot test) ≤±5% Full scale



Power: AC220V ±10% @50Hz



Air pressure: 0.4-0.6Mpa



Temperature: 0-45℃







Armature testing machine manufacturer sample needed:


 Armature sample




Please click below link to view video

https://youtu.be/eiuCEeQbWCo
