Perkins Ford Hairpin Winding Machine Lucas Motor Starter Hair Pin Forming Machine

Perkins Ford Mitsubishi Lucas Motor Starter Hair Pin Forming Machine

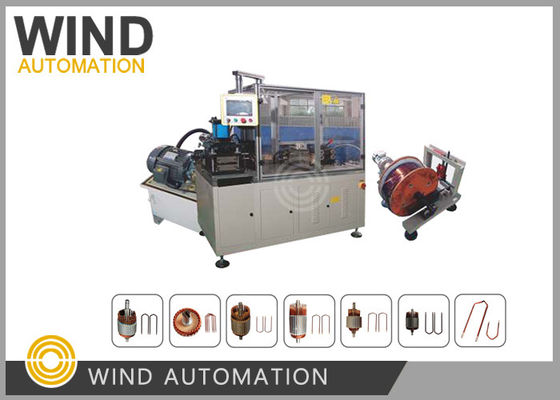

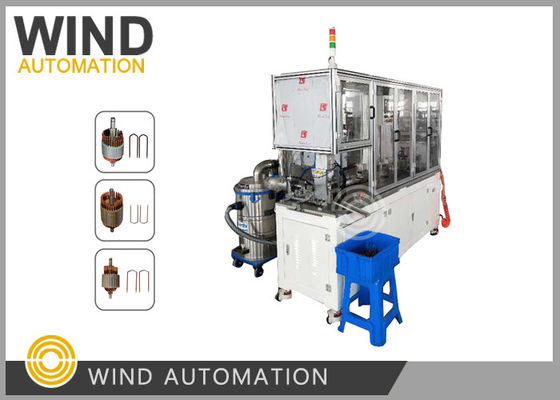

Tractor Armature Hairpin Winding Forming Machine WIND-AWF-F Flat wire forming machine

This forming machine produces conductor for starter armature bare wire without enamel.

It can automatically turn single bare copper wire into conductor. During forming, one operator is quite enough to operate this machine.

(1)Specifications

(2) Application

Suitable for starter motor, areospace motor armature to do haripin coil forming.

(3) Features

Suitable for flat wire

High efficiency, automation and productivity, 25pcs/min

Mitsubishi PLC control, colorful touching screen

Capable of producing conductor with customized twisting angle

One operator is quite enough to operate this machine

(4)Machine configuration

Mitsubishi PLC Control
WEINVIEW touch screen
Airtac pneumatic unit

SPG enamel remover
Schneider electric components

(5) Competitive advantages

1. High efficiency, Cycle time Around 25pcs/ minutes

2. Four cutter cut the flat wire

3. Forming angle is adjustable.

4. Flat wire forming machine is comprised of three major parts, wire feeder,straightening machine and feed forming

5. The feeding length can be set on screen, mechanical linkage automatic punch forming

You may click below photo to view hairpin winding machine working video

Tag: hairpin coil forming machine, haripin forming machine, Wire shaping machine, wire forming machine, shaping machine, coil forming machine, rectangle wire forming machine, areospace coil forming machine, starter harpin forming machine ,starter bar winding machine
