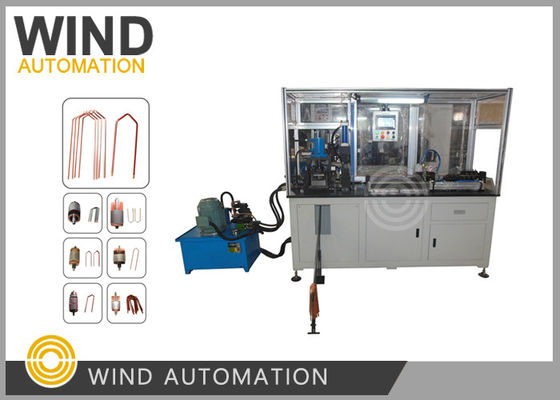

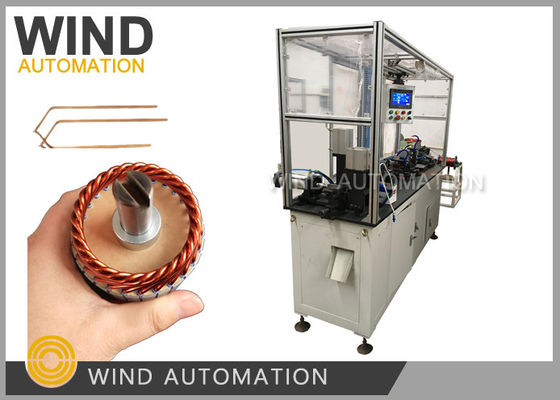

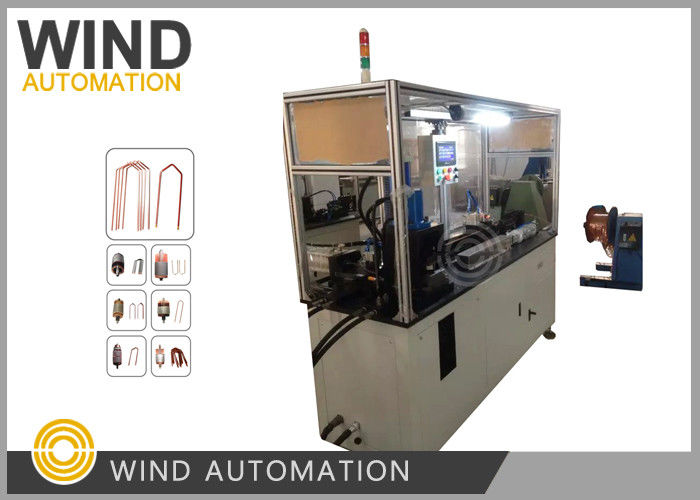

Tractor Armature Hairpin Winding Forming Machine WIND-AWF-F Flat wire forming machine
This forming machine produces conductor for starter armature bare wire without enamel.
It can automatically turn single bare copper wire into conductor. During forming, one operator is quite enough to operate this machine.
|Air Pressure Supply
|Varnish Removing Length
Suitable for starter motor, areospace motor armature to do haripin coil forming.
Suitable for flat wire
High efficiency, automation and productivity, 25pcs/min
Mitsubishi PLC control, colorful touching screen
Capable of producing conductor with customized twisting angle
One operator is quite enough to operate this machine
Mitsubishi PLC Control
WEINVIEW touch screen
Airtac pneumatic unit
SPG enamel remover
Schneider electric components
(5) Competitive advantages
1. High efficiency, Cycle time Around 25pcs/ minutes
2. Four cutter cut the flat wire
3. Forming angle is adjustable.
4. Flat wire forming machine is comprised of three major parts, wire feeder,straightening machine and feed forming
5. The feeding length can be set on screen, mechanical linkage automatic punch forming
You may click below photo to view hairpin winding machine working video
