Four Arm Automatic CNC Stator Coil Top Arc Forming Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Critical Factor: | It Determines The Ability To Manufacture Motors | Working Station: | Combined Machine |
|---|---|---|---|
| Handled Wire Size: | 3mm*8mm, AWG9, AWG0 | Hairpin Forming Process: | Cutting, Enamel Stripping, Forming |
| Cycle Time: | The Cycle Time Related To Wire Length | HS Code: | 84798110 |
| Highlight: | automatic stator coil forming machine,CNC coil top arc machine,four arm stator winding machine |
||

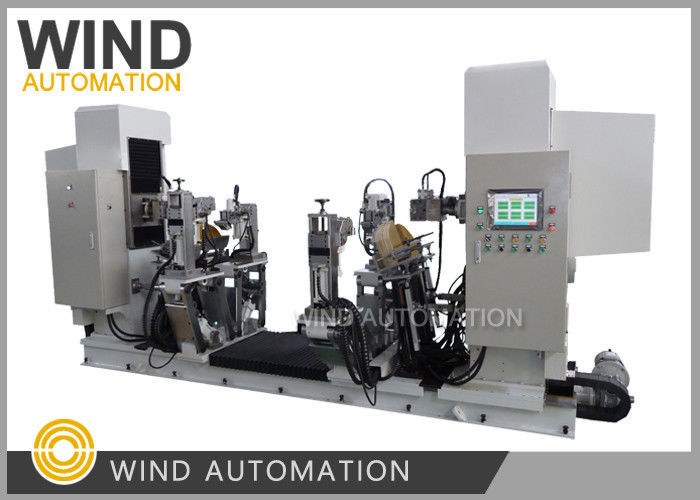

Four Arm Automatic CNC Stator Coil Top Arc Forming Machines
Arc forming machine is very important to motor production. It determines the ability to manufacture motors.
Wind Automation had supplied to many Russian customers.
Features
(1)This machine adopts digital control, carried out by CNC proportional servo hydraulic valve, all parameters can be displayed, modifified, stored on the screen, storage can reach more than 1000 pieces, all parameters can be called at any time, coil's parameters and automatic detection value display on the screen.
Wind Automation had supplied to many Russian customers.
Features
(1)This machine adopts digital control, carried out by CNC proportional servo hydraulic valve, all parameters can be displayed, modifified, stored on the screen, storage can reach more than 1000 pieces, all parameters can be called at any time, coil's parameters and automatic detection value display on the screen.
(2)This equipment can automatically and successively finish the coils' forming process from fusiform to the product coils;
(3)This equipment's coil opening, angle, nose height, arc, control accurately after forming, no longer need re-shaping mould;
(4)This equipment's end top arc system adopts multi-board joining type, manually join out different arc to ensure the different specifification coil's end forming requirements;
(5)This equipment's clip can adjust 0~140°, the linear edge and end turning angle won't bulge, and the clip lock tightly and won't move in the forming process to ensure no mechanical damage between coils, the coil inter-circle insulation is intact to guarantee the coil's electrical performance reliable;
(6)This equipment has very easy solution method to the coil's rebound problem. Forming Machine's angle and forming are two
independent systems, they adjust and compensate by themselves with non-interference in each other.
Specification
Specification
1,Fusiform total length range: 580~3200mm. T-type coil's max. width: 120mm;
2,Coil linear side: 400~2200mm. Projection length at ends after forming: 75~560mm;
3,Max. included angle between two linear sides: 0~70° respectively adjustable for front and rear angles, total angle 0~140°;
4,Total width of coil opening (pitch): 100~800mm.(can reach 1000mm when max angle);
5,Coil section (width×height): 7~30mm×12~70mm, min. 7×12mm, max. 30×70mm, 2 chucks each at front and rear;
6,Coil nose pin diameter: φ24, φ39;
7,Coil nose part slanting: 0~30°;
8,Peaking nose part height: -80~300mm;
9, Top arc height: 0~250mm, max. can reach 350mm when big opening;
10,Shaping precision: angle <±0.2°. Opening on the Forming Machine <±0.25mm~±0.75mm;
11,Coil forming cycle: in 1~2min;
12,Hydraulic pump station's system pressure: 8Mpa, oil tube withstand pressure: >20Mpa;
13,Other standards also has the straight length: 1600mm, 2500mm, 3200mm.
