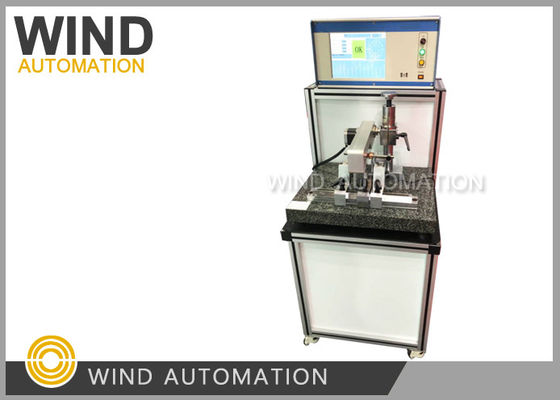

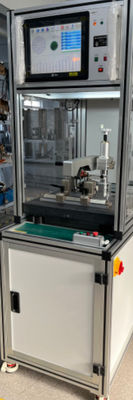

Roundness Armature Testing Equipment Electric Motor Tester For Brushed DC Motor

China Roundness Armature Testing Equipment Electric Motor Tester For Brushed DC Motor supplier

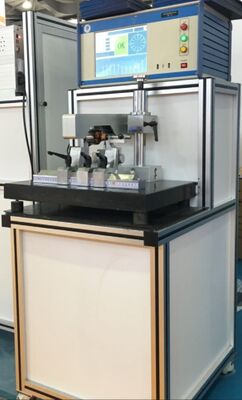

Large Image :  Roundness Armature Testing Equipment Electric Motor Tester For Brushed DC Motor

Product Details:

Place of Origin: China
Model Number: WIND-RM-10

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 35 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Certificate: Main Parts CE
Working Station: One Station Automation Type: Fully Automatic
Testing Item Content Display: Commutator Surface Armature Commutator: Any Kinds Of Commutator

Commutator Roundness Good Communication Testing Device For Brushed DC Motor WIND-RM-10




(1) The purpose commutator roundness testing


If the commutator is not round, this increses the chances of incresed brush wear on the brushed DC


motor armature, as well as an increase in arcing and sparking of the commutator thereby destroying the


commutator surace, Good commutator roundness is very important for the armature performance.




(2) Technical Data



Test item



Test description



Test result



Inside of the Bar film



-10um ~ 10um



< 0.2um



Between slices



-10um ~ 10um



< 0.2um



Edge beat



-20um ~ 20um



< 0.2um



Cicyle beat



-20um ~ 20um



< 0.2um





(3) Features


1. The high precision LVDT sensor is used for the roundness measurement, combining the analog and


digital filtering method into realization a high stability and rapid access to the sensor signal, to ensure


the high precision of the sensor signal.


2. Stepper motor is used as a driving source of measurement,combined with motor driven high subdivision


and high-speed pulse, ensuring the motor to run as smooth continous and measurement points


equidistant distribution.


3. The commuatator slot data recognition algorithm is unique, to ensure that the measurement results of


the data dones not include the gaps and the gap edge data, to guarantee the authenticity of the


measurement results.


4. When it measured on commutator bar also complete the detection of roundness quality surface to the


center axis at the same time, to find more accurate qualtiy armature.



(4) Competitive Advantages


1. Commutator surface turning quality is one of the importand factors that infulence the performance


   of armature, timely check the turning qulaity of commutator can provide an effective means of control


   the lathing quality.


2. The WIND-RM-10 Rotor roundness tester can deteck the armature commutator roundness fast and


    accurately, it is a fast and direct way to know the state of the armature production, can control the


    product quality timely, control the production process and ensure the armature manufacturing quality.

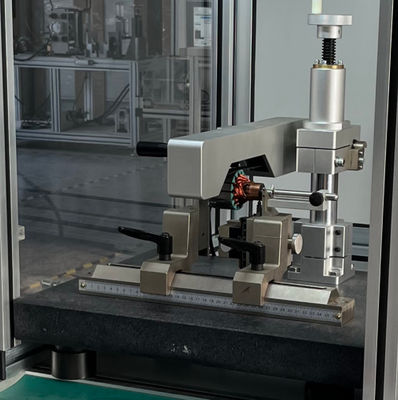

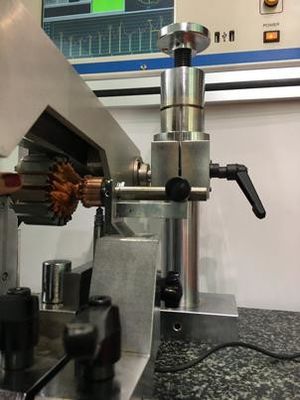

3. High precision, no rust, rust, acid and alkali, no magnetization, no deformation, good wear resistance,


    the marble is used as a placement platform, V seat is placed on the marble platform, and the placement


    accuracy of the V seat is enhanced. The components (and connecting rod driving parts) drive the rotor


   (and the connecting rod drive parts) with two pairs of leveraged linkage lever mechanism synchronous


   clamp Tight rotor ensures smooth rotation of the rotor, ensuring the accuracy of the test.



   In conclusion, the utility model improves the automation degree of the rotor roundness tester in the


   existing technology, improves the production efficiency, saves the manpower,


   and improves the testing accuracy of the roundness tester.
