1KW Hairpin Winding Machine Hairpin Forming Machine For Hybrid Car EV BSG Motor

China 1KW Hairpin Winding Machine Hairpin Forming Machine For Hybrid Car EV BSG Motor supplier
1KW Hairpin Winding Machine Hairpin Forming Machine For Hybrid Car EV BSG Motor supplier 1KW Hairpin Winding Machine Hairpin Forming Machine For Hybrid Car EV BSG Motor supplier 1KW Hairpin Winding Machine Hairpin Forming Machine For Hybrid Car EV BSG Motor supplier

Large Image :  1KW Hairpin Winding Machine Hairpin Forming Machine For Hybrid Car EV BSG Motor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-HF-BX

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet Size 2000mm*800mm*1800mm
Delivery Time: 60 Working days
Detailed Product Description
Flat Wire Application: Wire Bending Machine For Hair Pin Working Station: Wire Forming Combined Machine
Handled Wire Size: Starter Flat Wire Conductor Below 3mm*8mm Hairpin Forming Process: Feeding,Straighten Alignment, Cutting And Punchforming, Unloading
Cycle Time: Accoring To Length 5s To 8s Per Piece HS Code: 84798110
Flat Wire New Energy Drive Motor: 1KW To 150KW After Sales: Engineers Available To Service Machinery Overseas

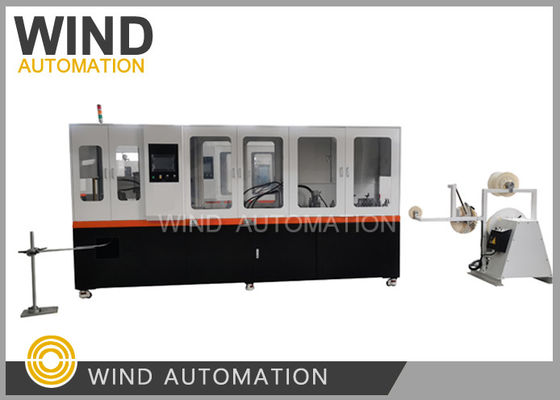

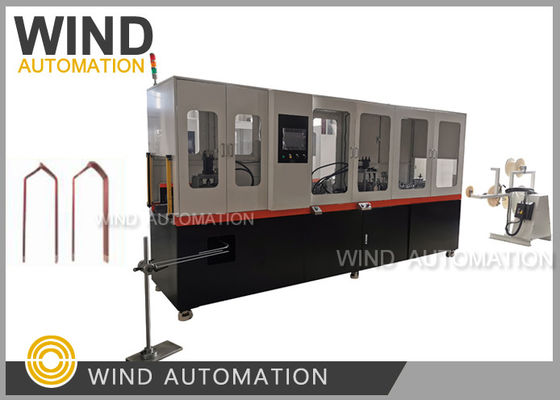

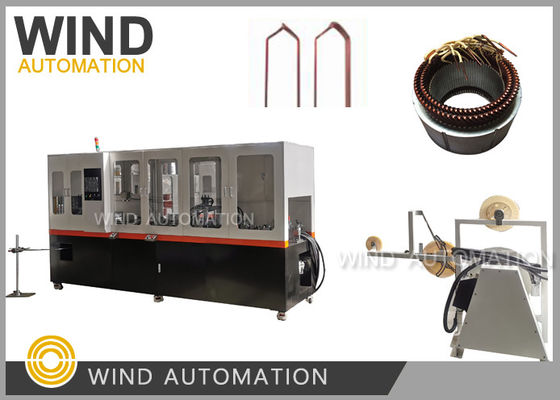

Hairpin Forming Machine For Hybrid Car EV BSG Motor Stator Electric Car WIND-HF-BX





This hairpin forming is a speical equipment for flat copper wire processing for the drive motor,

the equipment has design patent, the equipment can straightening enamelled copper wire and remove enamel on the plane profile side, automatic vacuum clearner,servo motor feeding,detection,cutting and forming.

Hairpin forming machine can be custom made for flat wire new energy drive motor stator from 1KW to 150KW



Hair pin forming  FMEA  Remark
Dereelering

spools size for holding wire for Wind Automation

to design the Wire dereeling device

Straightening
Enamel stripping

Length control

Depth control

the total length is always same and controllable,

Depth is ajustable by cutter or grinding device

Feeder

Encode,

Enamel damage while feeding

Feeding length can be setted on touch screen, controlled by servo motor,

Enamel damage not happen,

no contact with metal things

Cutting   Cylinder presure to control, also can shape cutter
Forming Forming Shape Not as per drawing

The forming angle,size should suitable stator, drawing is only for reference,

Basically forming shape consistent,not exactly same as drawing, the pupose of machine design will make sure actual hairpins inserted to stator, achieve assembley height, ID/OD dimension, after forming , there is fixture to check

U bending Hold one side, twist the other side Splitting forming or Punch forming
