Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace

China Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace supplier
Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace supplier Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace supplier Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace supplier

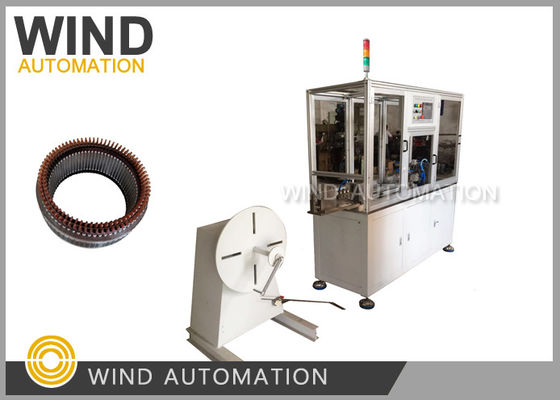

Large Image :  Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-NBX

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet Size 2000mm*800mm*1800mm
Delivery Time: 60 Working days
Detailed Product Description
Critical Factor: Formed Hair Pin Meet Drawing Working Station: Combined Machine
Handled Wire Size: Length Below 300mm Hairpin Forming Process: Cutting, Forming
Cycle Time: The Cycle Time Related To Wire Length HS Code: 84798110

Starter Generator Motor Coil Hair Pin Forming Machine For Auto Industry Areospace


Application:Automotive motors, pure electric vehicles, hybrid electric vehicles, electric forklifts,

electric tricycles, tourist vehicles, electric tools and automobile motors



1. Machine application

Flat wire hairpin forming WIND-NBX is a custom made machine

According to requirements

The machine automatic dereeling,straighten, press,

pull and cut wire



2. Machine detail content

1) Automatic wire feeding dereeling device which can feed or stop to feed wire

with sensor,when wire was press, sensor can detect and feed wire,

when there is no wire, pause to feed



2) Wire straighten device with X,Y two direction guide wheel

straightening mechanism, so when wire is pulled at same time straighten



3) Pull wire device consist of pull press wire mechanism and pull wire

mechanism. The pull press wire cylinder and press fixture are assembled on

slideway, the servo motor for feeding wire and ball screw rod work together to

pull wire, length of wire pulled can be set on touch screen



4) Cutting device composed of cut press wire mechanism and cut mechanism,

To prevent wire vibrate, use press cylinder and press tooling to fix the wire,cut the wire with four cutters, at same time remove burr during cutting



5) Wire bend device , the wire bend press cylinder press the wire, then

Bend cylinder move gear to bend, after bend loose bend press cylinder,

bend cylinder return, feed wire to needed length again

(If your wire length is long, so two times feeding is required),

Then cut wire and unload automatically



3. Electronic parts

1) Simens PLC and HMI with touch screen

2) Servo motor Delta

3) Low voltage electrical appliance Delixi

4) Pneumatic components Airtac



4. Machine space required

Wire frame length 700mm

Machine Lenth 2000mm Width 620mm Height 1700mm
