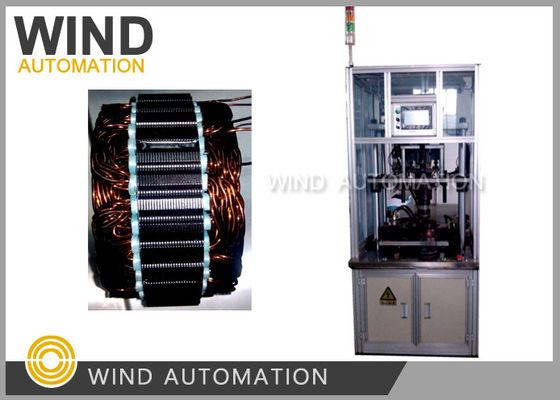

Generator Stator Forming Machine After Coil Winding Insertion
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Wave Winding: | Winding Three Phases Coils |
|---|---|---|---|
| Slots: | 24slots, 36 Slots, 48 Slots | Wire Cutting: | Auto |
| After Sales: | Engineers Available To Service Machinery Overseas | HS Code: | 8479811000 |
Generator Coil Winding Insertion Machine After Alternator Coil Winder
1. Advantage
- Fast tooling change design within 20 min.
- Operation time less 20s.
2.Operation process
- Manually load stator into the fixture.
- Press Start button then machine will automatically do forming process. After forming, unload stators.
3.Station Introduction
- Manually load workpiece transferred from previous station.
- This machine adopts a turn-over mechanism. It can produce different types stators by changing tooling.
- Operation height is 1050mm.
4. Machine Configuration
| Item | Brand |
| Guideway | ABBA/TCP |
| Sensor | Sick |
| PLC | MITSUBISHI |
| Touch screen | MITSUBISHI |
| Electrical components | Schneider |
| Pneumatic Components | Festo |
| Hydraulic system | Kompass |
5.Remark
This forming machine covers a stack length range within 20-42mm.
Both tooling change and mechanical adjustment required for different stack length.
Click below link to view generator stator wave winding insertion video
